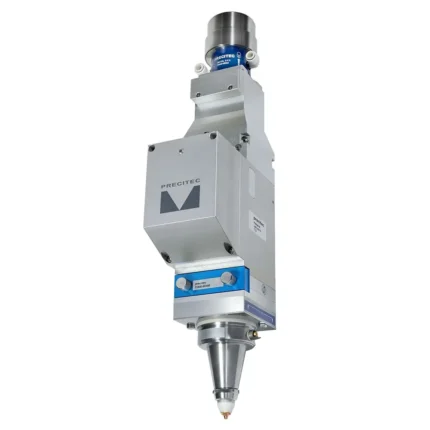

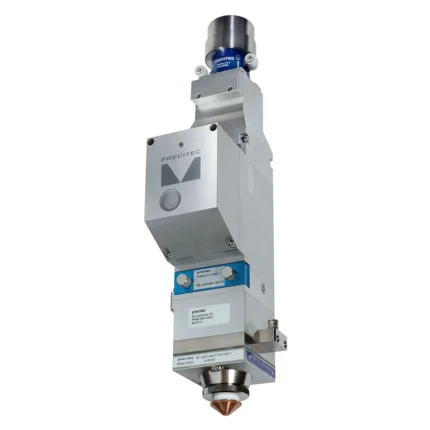

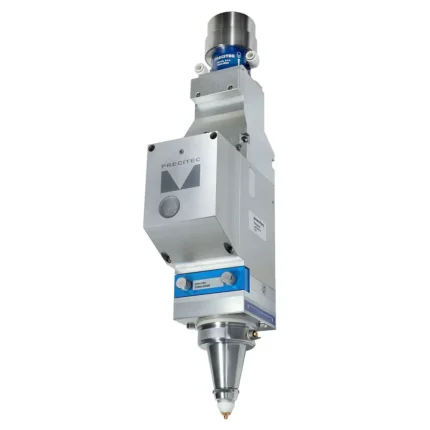

Light Cutter | High-Performance Laser Cutting Systems by PRECITEC
Light Cutter Core Parameters Summary
- Max laser power: 3 kW (LightCutter) / 4 kW (LightCutter Motorized)
- Wavelength compatibility: 1030 – 1090 nm
- Optical path options: Straight (both); Angled (LightCutter only)
- Collimation focal lengths (Fc): 75 mm, 100 mm (LightCutter); 100 mm (Motorized)
- Focusing focal lengths (Ff): 100–200 mm (LightCutter); 125–150 mm (Motorized)
- Weight range: 3.3 kg (LightCutter) – 4.4 kg (Motorized)
- Vertical adjustment range: −9 mm / +4 mm
- Max cutting gas pressure: 25 bar
- Distance sensor: Lasermatic© (temperature and plasma resistant)
