Product Introduction

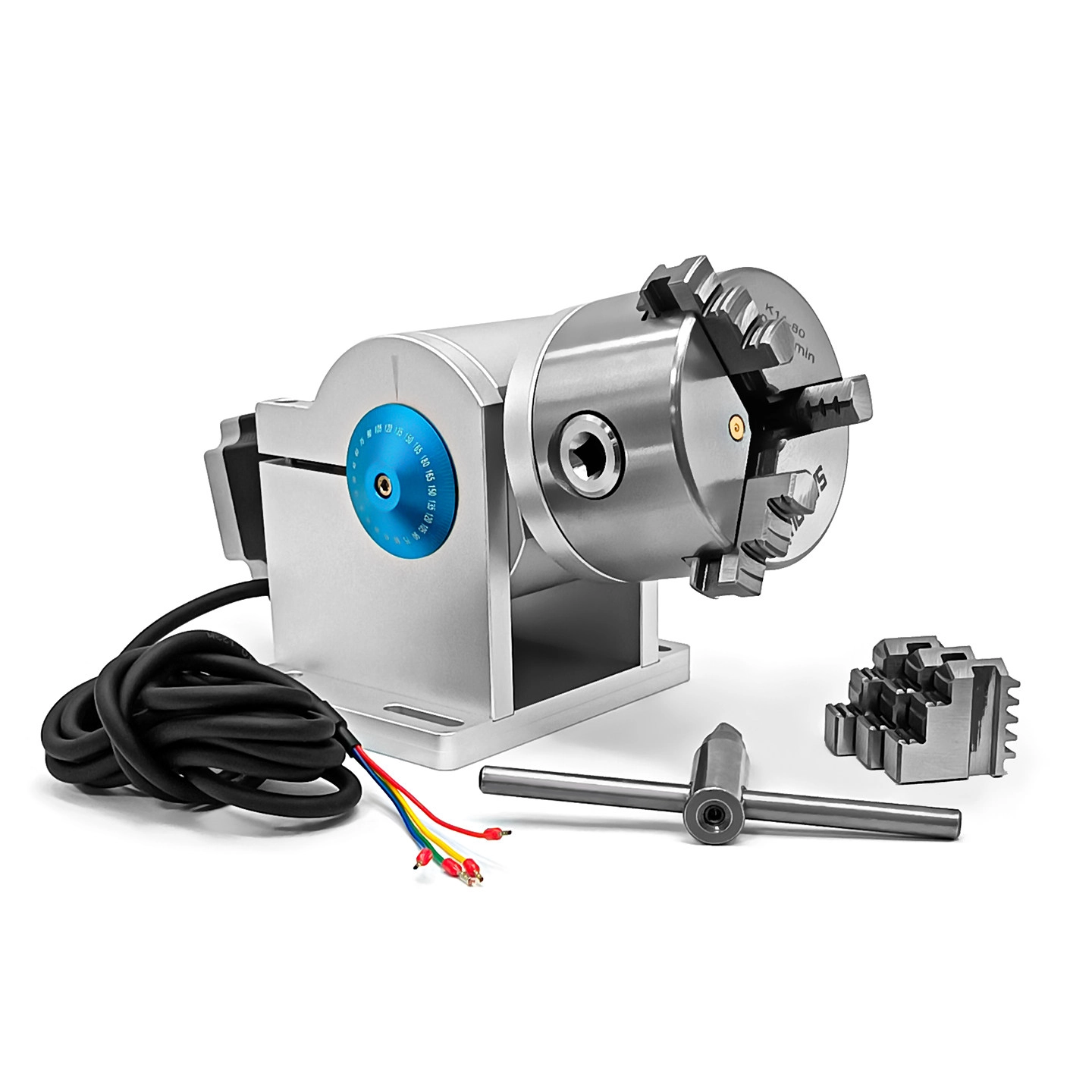

The Labeling Machine Rotary Shaft is a precision-engineered accessory designed to enable stable, accurate rotational positioning for laser-based processing equipment, serving as a core component for labeling, marking, and engraving tasks. This rotary shaft features a 57*76 four-wire stepper motor (with a 2-meter cable) that delivers consistent torque and precise control, ensuring smooth rotation during high-detail laser operations. It offers two center height options—79mm (low profile) and 129mm (high profile)—to fit diverse labeling machine setups and workpiece dimensions, while its interchangeable 80mm/100mm chucks provide flexible clamping for parts of varying diameters.

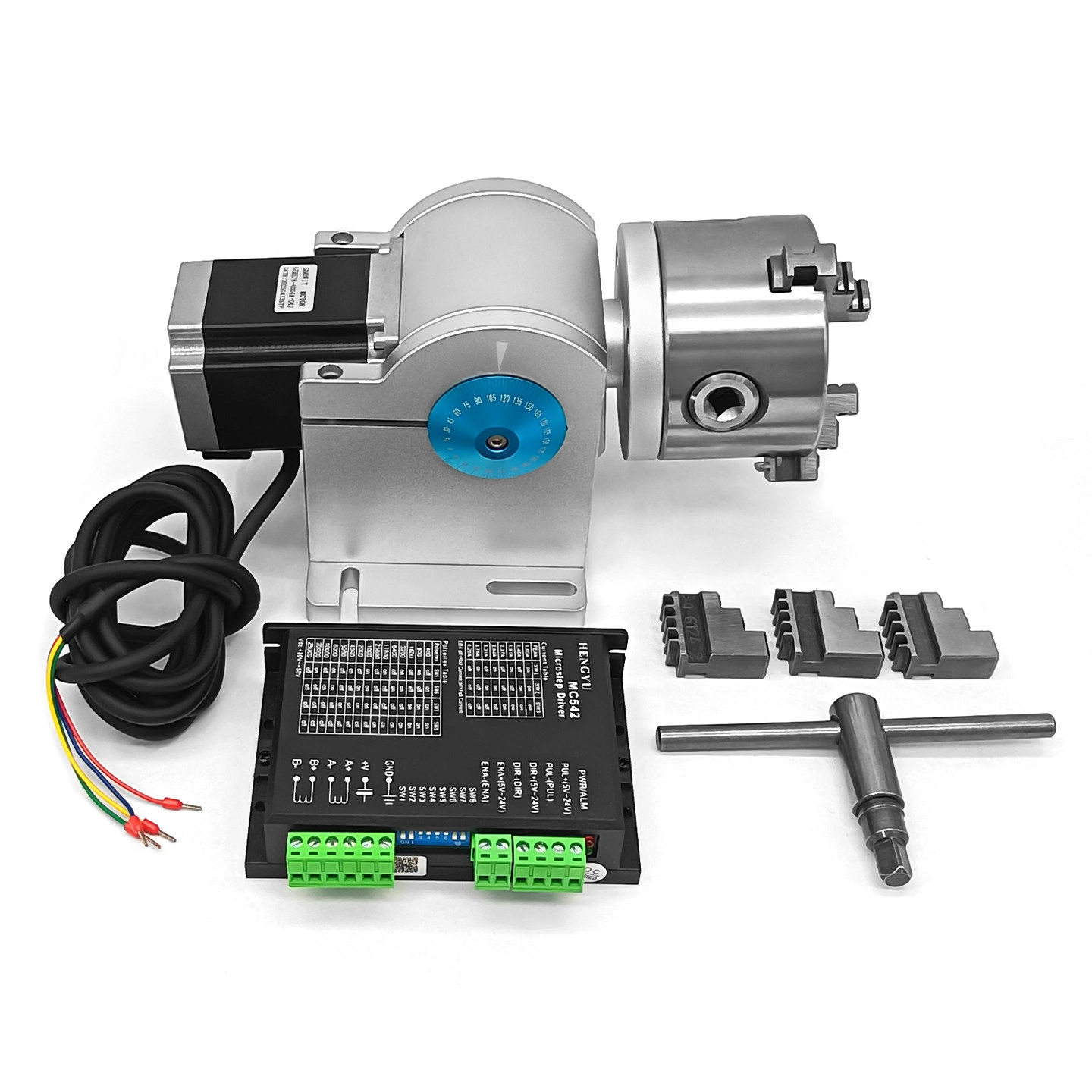

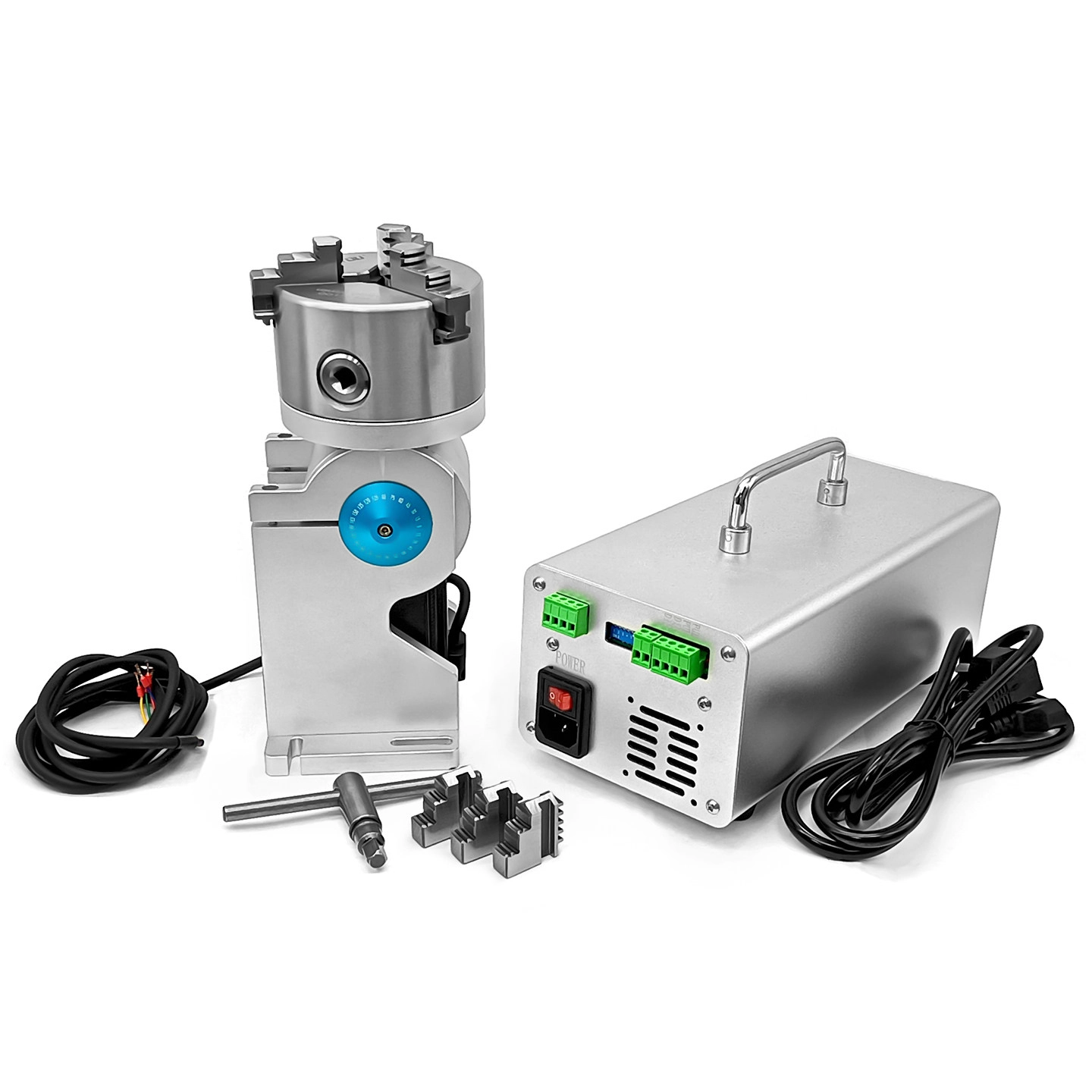

Compatible with the MC542 driver and 150W-24V power supply, this rotary shaft integrates seamlessly with most laser labeling, marking, and engraving systems. With load capacities of 3kg (for 80mm chuck) and 1.5kg (for 100mm chuck), it balances stability and versatility for small to medium-sized workpieces. Whether used for laser labeling of cylindrical products, precision laser welding of components, or detailed laser engraving of curved surfaces, this Labeling Machine Rotary Shaft enhances processing efficiency and accuracy for industrial production, small-batch customization, and workshop applications.

Product Features

• 57*76 four-wire stepper motor: Delivers stable torque and precise rotational control for laser processing tasks
• Dual center height options: 79mm (low) and 129mm (high) to adapt to different labeling machine configurations
• Interchangeable chucks: 80mm/100mm diameter options for clamping various workpiece sizes
• Compatible components: Works with MC542 drivers and 150W-24V power supplies for easy system integration
• Targeted load capacities: 3kg (80mm chuck) / 1.5kg (100mm chuck) for stable processing of small/medium workpieces
• Long motor cable: 2-meter wire length for flexible installation in labeling machine setups
• Precision design: Ensures consistent rotational positioning for high-detail laser labeling, marking, and engraving
• Wide compatibility: Suitable for multiple laser processing equipment types (marking, welding, engraving)

Product Specification Table

<<

Brief Description

• Product: Labeling Machine Rotary Axis
• Motor: 57*76 Four-Wire Stepper (2m Cable)
• Center Height: 79mm (Low) / 129mm (High)
• Chuck Options: 80mm / 100mm
• Compatible Driver: MC542
• Compatible Power Supply: 150W-24V
• 80mm Chuck Load: 3kg
• 100mm Chuck Load: 1.5kg
• Core Use: Laser Labeling/Marking/Engraving

Application Areas

This Labeling Machine Rotary Shaft is designed for precision laser processing scenarios, including:

• Laser Labeling Machines: Rotating cylindrical products (pipes, bottles, shafts) for logo/text labeling
• Laser Marking Machines: Marking serial numbers, barcodes, or patterns on curved workpieces
• Laser Welding Machines: Precise rotational positioning of small components for spot/seam welding
• Laser Engraving Machines: Engraving detailed patterns on curved surfaces (wooden crafts, plastic products)
• Small-Batch Production: Custom processing of parts requiring rotational laser operations
• Industrial Manufacturing: Labeling and marking of cylindrical industrial components
