Laser Cutting Fixture Marking Machine Foil Fixture Thin Paper Cutting Gold Cutting Horizontal Stretching Translation Stage

Product Introduction

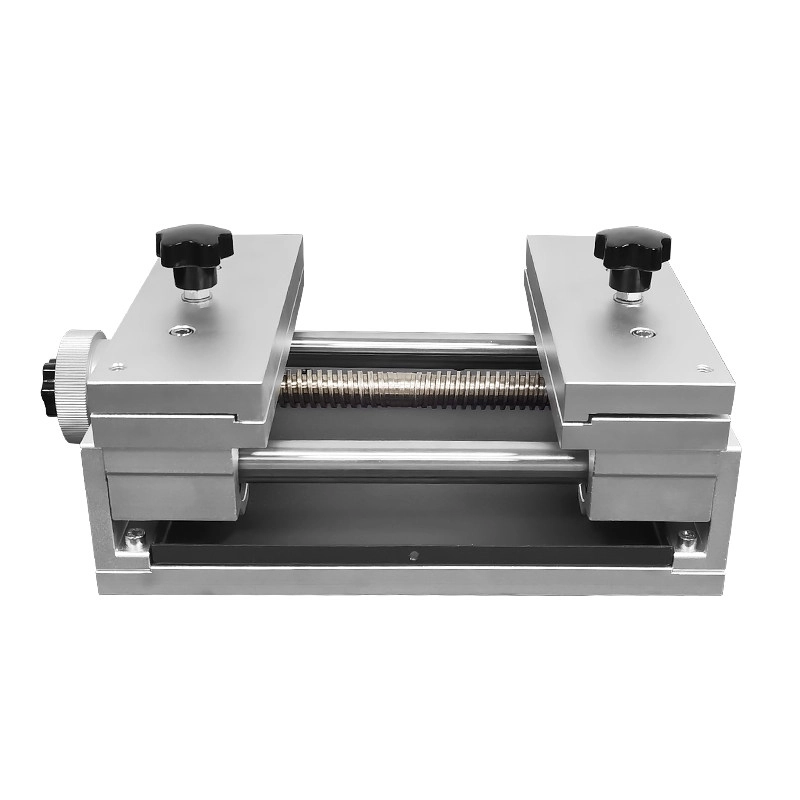

The Aluminum Alloy Laser Cutting Fixture (available in BXZJJ01 large and XBZJJ02 small models) is a specialized work table solution engineered for laser cutting, engraving, and precision processing tasks. As a premium laser cutting fixture, it features a durable aluminum alloy construction, balancing lightweight design with robust clamping stability to secure thin workpieces (0-5mm thickness) during high-precision operations. The large BXZJJ01 model uses a pair-opening sliding system (reverse-thread screw) for symmetric clamping, while the small XBZJJ02 adopts one-side fixed, one-side sliding (single positive-thread screw) for flexible positioning.

With maximum clamping ranges of 160*98mm (large) and 120*120mm (small), this laser cutting fixture accommodates diverse workpiece sizes, from small electronic components to medium-sized panels. It includes standardized mounting dimensions (100*150mm for large, 100*100mm M6 holes for small) for seamless integration with laser cutting machines or workbenches. Perfect for laser processing workshops, custom engraving studios, or small-scale manufacturing, this laser cutting fixture ensures workpieces remain stable during cutting—reducing errors and improving processing efficiency.

Product Features

• Dual model options: Large (BXZJJ01) and small (XBZJJ02) fixtures to fit different workpiece sizes and processing needs
• Aluminum alloy construction: Durable, lightweight, and corrosion-resistant for long-term use in workshop environments
• Thin workpiece compatibility: Clamps 0-5mm thick materials (ideal for laser cutting/engraving of sheets, films, etc.)
• Two sliding systems: Pair-opening (reverse-thread) for symmetric clamping (large) or one-side fixed (positive-thread) for flexible positioning (small)
• Standard mounting holes: Compatible with laser cutting machines/workbenches via 100*150mm (large) or 100*100mm M6 (small) holes
• Stable clamping: Securely holds workpieces to minimize vibration and processing errors
• Large model with接料托盘: Includes a material-receiving tray (large model) for easy collection of cut parts
• Portable weights: 5.2kg (large) and 1.9kg (small) for easy repositioning between workstations

Product Specification Table

<<<<<<

Brief Description

• Product: Aluminum Alloy Laser Cutting Fixture (2 Models)
• Models: BXZJJ01 (Large), XBZJJ02 (Small)
• Material: Aluminum Alloy
• Clamping Thickness: 0-5mm
• Max Clamping Range: 160*98mm (Large) / 120*120mm (Small)
• Sliding Mode: Pair-opening (Large) / One-side Fixed (Small)
• Mounting Holes: 100*150mm (Large) / 100*100mm M6 (Small)
• Net Weight: 5.2kg (Large) / 1.9kg (Small)
• Large Model Bonus: Includes Material-Receiving Tray

Application Areas

This laser cutting fixture is designed for precision processing scenarios, including:

• Laser Cutting Workshops: Clamping thin metal/plastic sheets for accurate cutting tasks
• Engraving Studios: Securing acrylic, wood, or paper for custom engraving and marking
• Electronics Manufacturing: Holding small circuit boards or components for precision laser processing
• Custom Product Production: Clamping decorative panels, labels, or crafts for personalized laser work
• Prototyping Labs: Fixing prototype parts for small-batch laser cutting/engraving
