Light Cutter Core Parameters Summary
- Max laser power: 3 kW (LightCutter) / 4 kW (LightCutter Motorized)
- Wavelength compatibility: 1030 – 1090 nm
- Optical path options: Straight (both); Angled (LightCutter only)
- Collimation focal lengths (Fc): 75 mm, 100 mm (LightCutter); 100 mm (Motorized)
- Focusing focal lengths (Ff): 100–200 mm (LightCutter); 125–150 mm (Motorized)
- Weight range: 3.3 kg (LightCutter) – 4.4 kg (Motorized)
- Vertical adjustment range: −9 mm / +4 mm
- Max cutting gas pressure: 25 bar
- Distance sensor: Lasermatic© (temperature and plasma resistant)
Light Cutter: Advanced Laser Cutting Solutions for Precision and Efficiency

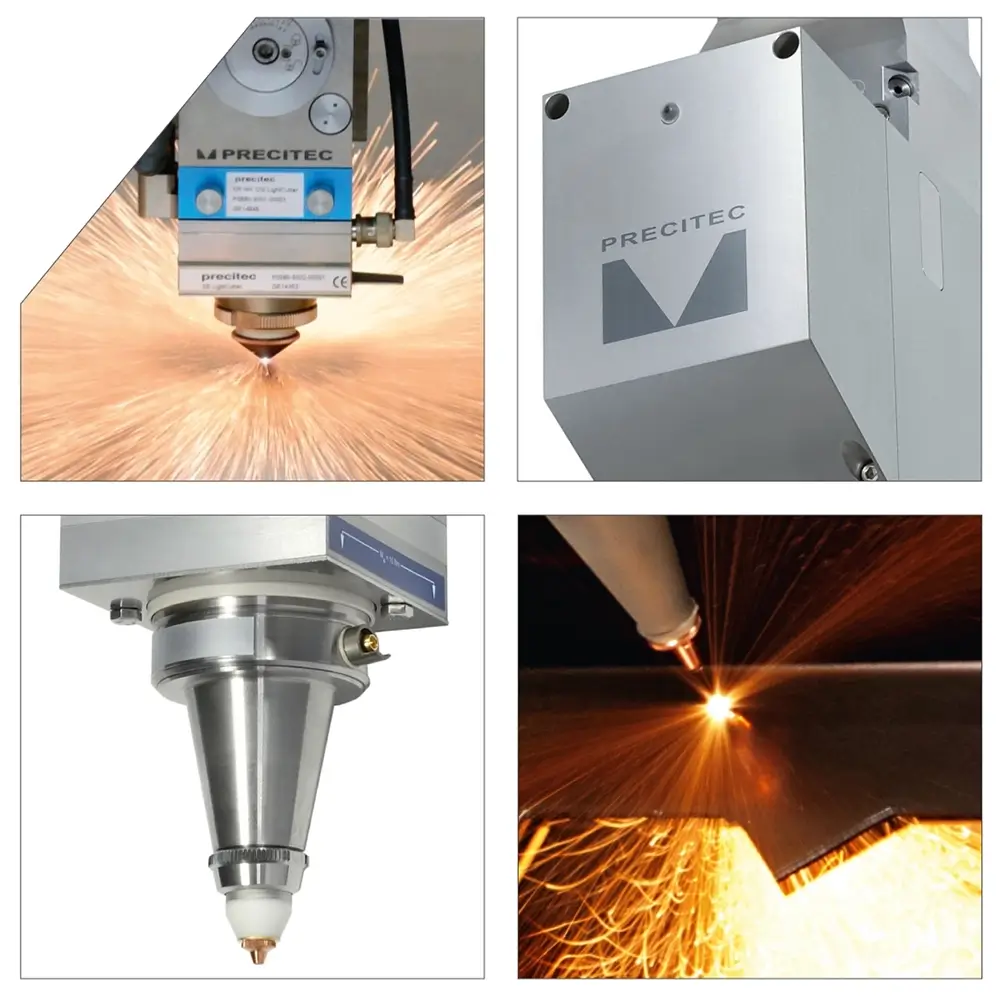

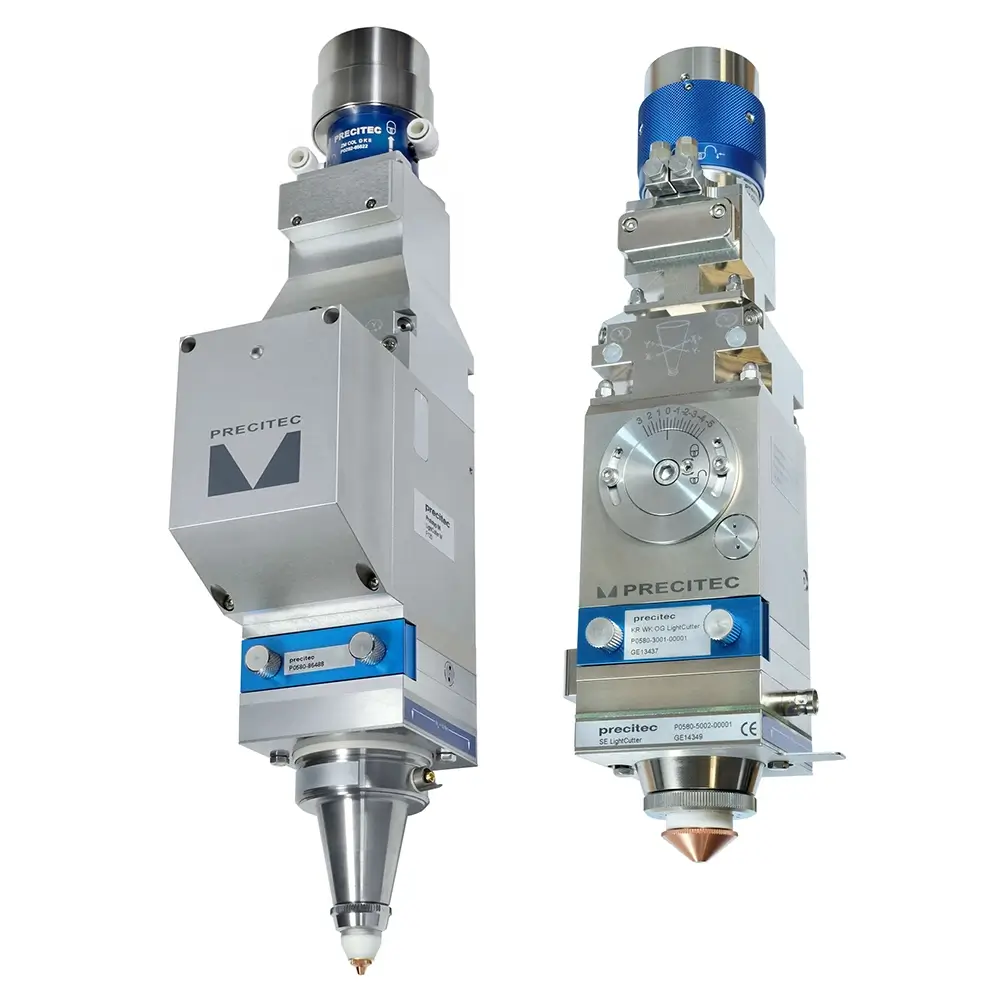

The Light Cutter series, including the manual LightCutter and motorized LightCutter Motorized, represents PRECITEC’s state-of-the-art offering for economic middle-power laser cutting. Designed with proven Lasermatic© distance sensor technology and high-quality fused silica optics, these systems deliver exceptional performance—supporting max laser powers of 3 kW (LightCutter) and 4 kW (LightCutter Motorized) with wavelengths of 1030–1090 nm.
Their lightweight, compact, and dust-proof design ensures long-term stability, while tool-free protective window cartridges and dual upper/lower protective windows simplify maintenance and protect critical optical components. Ideal for diverse applications, the Light Cutter series caters to both flatbed and 3D cutting needs, handling materials like mild steel (up to 20 mm), stainless steel, and aluminum with smooth, burr-minimal edges. Whether for high-speed 2D cutting or precise 3D tube processing, the Light Cutter adapts to custom configurations, making it a versatile choice for modern manufacturing workflows.
Key Features of Light Cutter
- Integrates high-quality fused silica optics optimized for 1030–1090 nm wavelengths, ensuring low reflection and minimal focal shift
- Equipped with proven Lasermatic© distance sensor for constant workpiece distance, fast response, and drift-free performance (temperature and plasma resistant)
- Tool-free protective window cartridge for quick, easy maintenance without additional tools
- Upper and lower protective windows to fully shield the optical system and prevent contamination during fiber plugging
- Lightweight and compact design (3.3 kg for LightCutter, 4.0–4.4 kg for LightCutter Motorized) enabling high dynamic performance
- Dust-proof and robust construction for long-term stability in industrial environments
- Manual or motorized vertical adjustment: manual version offers calibrated scales for precision; motorized version provides fast, remote control via I/O or fieldbus interface
- 3D-compatible version (with Ff150 focal length) for tube, 2.5D, and 3D cutting, featuring a slim sensor insert with minimal interfering contour
- Status LED (motorized version only) for clear visual feedback—green for successful focal position, red for errors
- Supports multiple fiber sockets (QBH, D) and optical configurations (straight/angled paths, various collimation/focusing focal lengths)
Light Cutter Technical Specifications
| Specification | LightCutter | LightCutter Motorized |
|---|---|---|
| Max. Laser Power | 3 kW (1030 – 1090 nm wavelength) | 4 kW (1030 – 1090 nm wavelength) |
| Optical Path Configuration | Straight, Angled | Straight |
| Focal Lengths (Collimation, Fc) | 75 mm, 100 mm | 100 mm |
| Focal Lengths (Focusing, Ff) | 100 mm, 125 mm, 150 mm, 200 mm | 125 mm, 150 mm |
| Max. Numerical Aperture (NA) | 0.16 (at Fc75), 0.12 (at Fc100) | 0.12 (at Fc100) |
| Dimensions (Width x Depth) | 69 mm x 75 mm | 69 mm x 130 mm |
| Axial Length | 328 mm (Fc75 / Ff125, straight) | 376 mm (Ff125), 414 mm (Ff150) |
| Weight | 3.3 kg (Fc75 / Ff125, straight) | 4.0 kg (Ff125), 4.4 kg (Ff150) |
| Fiber Sockets | QBH, D | QBH, D |
| Vertical Adjustment Range | −9 mm / +4 mm | −9 mm / +4 mm |
| Max. Acceleration | 3 g (= 28 m/s²) | 3 g (= 28 m/s²) |
| Max. Cutting Gas Pressure | 25 bar | 25 bar |
| Distance Sensor | Lasermatic© | Lasermatic© |
| Sensor Insert Compatibility | 2D; 3D (Ff150 only) | 2D; 3D (Ff150 only) |
Light Cutter Core Parameters Summary
- Max laser power: 3 kW (LightCutter) / 4 kW (LightCutter Motorized)
- Wavelength compatibility: 1030 – 1090 nm
- Optical path options: Straight (both); Angled (LightCutter only)
- Collimation focal lengths (Fc): 75 mm, 100 mm (LightCutter); 100 mm (Motorized)
- Focusing focal lengths (Ff): 100–200 mm (LightCutter); 125–150 mm (Motorized)
- Weight range: 3.3 kg (LightCutter) – 4.4 kg (Motorized)
- Vertical adjustment range: −9 mm / +4 mm
- Max cutting gas pressure: 25 bar
- Distance sensor: Lasermatic© (temperature and plasma resistant)
Light Cutter Application Areas
- Flatbed Laser Cutting head: Ideal for 2D cutting of flat materials like mild steel (up to 20 mm), stainless steel (up to 10 mm), and aluminum (up to 5 mm), delivering smooth edges and minimal burrs.
- 3D & 2.5D Cutting: 3D-compatible versions (with Ff150) excel at tube cutting, structural component processing, and complex 3D shapes, thanks to slim sensor inserts and stable optics.
- General Metal Fabrication: Suitable for industrial metalworking tasks such as precision cutting of metal sheets, plates, and profiles in automotive, aerospace, and construction sectors.
- High-Dynamic Manufacturing: Lightweight and compact design enables integration into high-speed production lines, supporting accelerations up to 3 g for efficient, rapid cutting cycles.
- Customized Cutting Solutions: Adaptable to custom flatbed or 3D setups, with multiple fiber socket and optical configurations to match specific production requirements.
- Medium-Power Industrial Applications: Perfect for economic middle-power cutting needs where balance of speed, precision, and cost-effectiveness is critical—replacing traditional cutting methods with laser efficiency.
