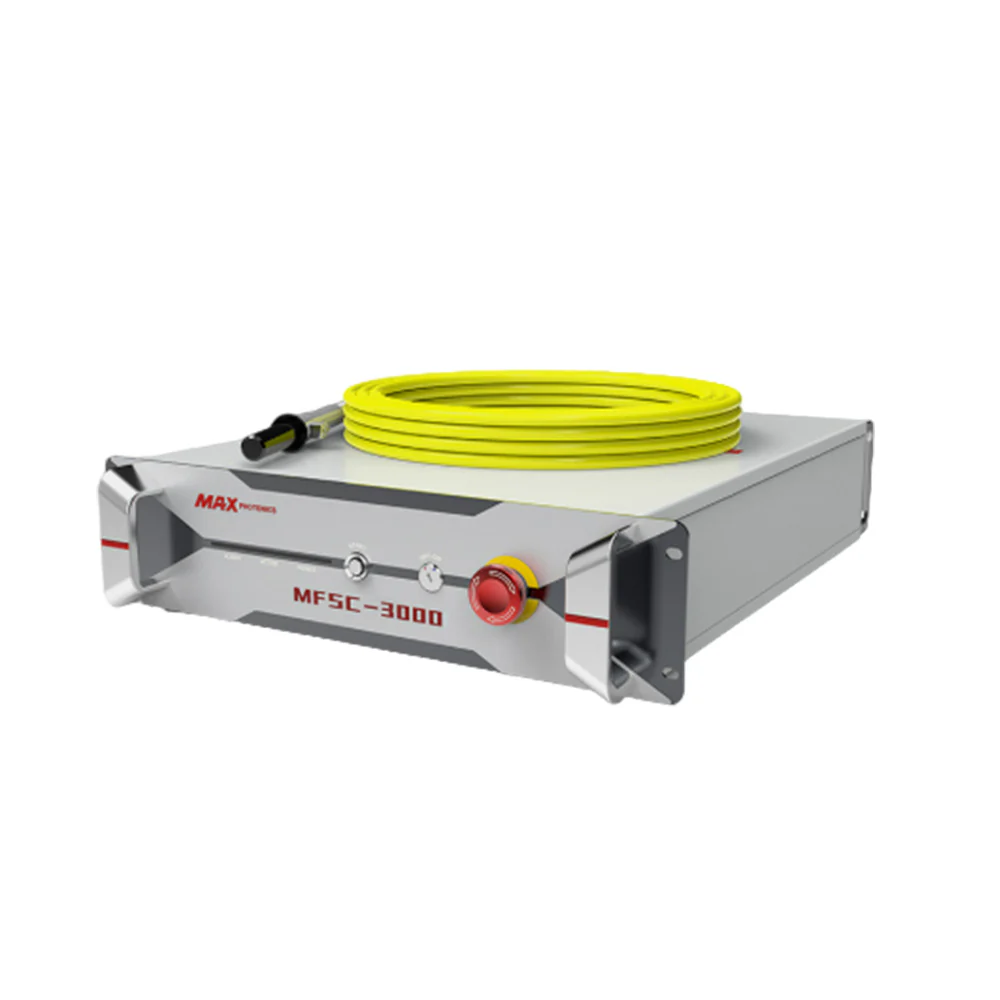

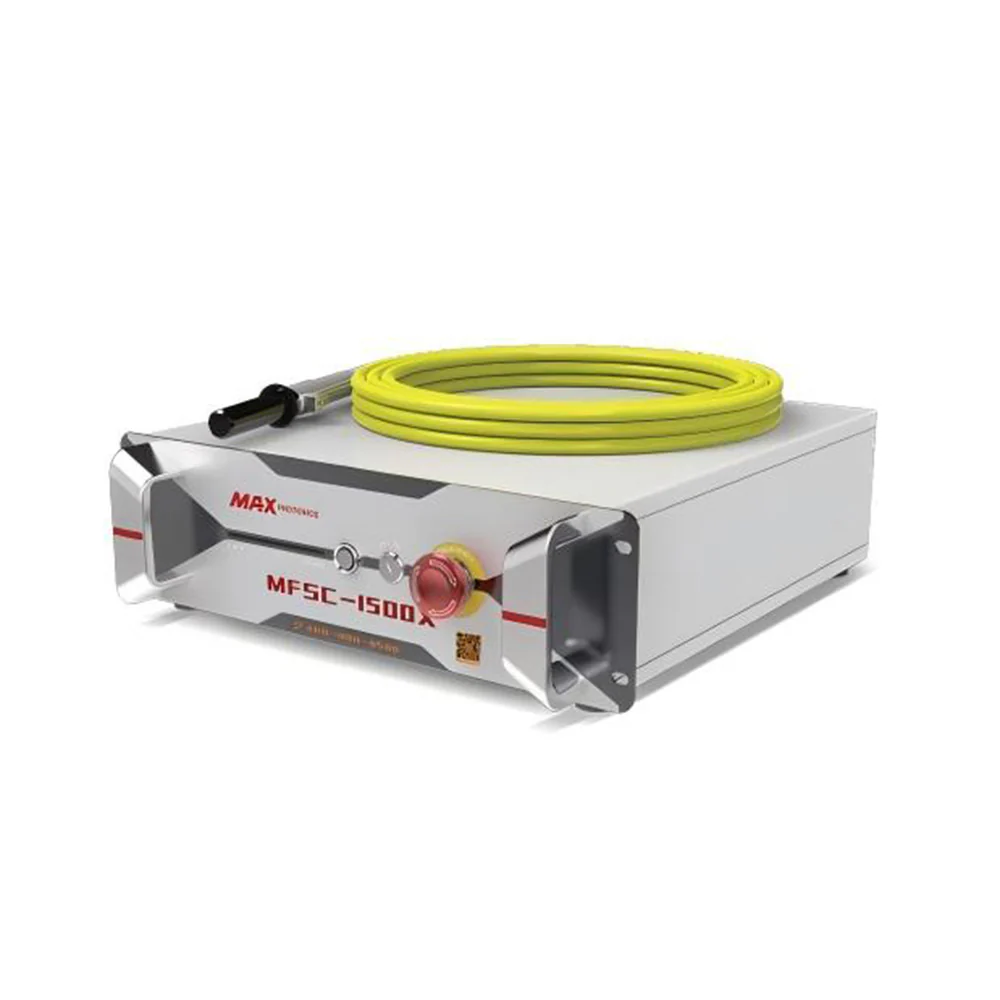

MAX MFSC 1500-6000W Single Module CW Fiber Laser Source

Introduction
The MFSC 1000W–6000W Single Module Continuous Wave Fiber Laser is a high-power laser source renowned for its excellent beam quality, high electro-optical conversion efficiency, and maintenance-free design. With a compact form factor and fiber core diameter options ranging from 100μm to 600μm (customizable up to 800μm–1000μm), the continuous wave fiber laser offers outstanding adaptability for various high-precision industrial applications including metal welding, cladding, new energy, 3C electronics, and fine processing.

Features

• Up to 6KW Output Power: Superior beam quality compared to multi-module lasers, with significantly enhanced efficiency.
• Excellent Material Processing Performance: Enables high-speed cutting of thin sheets and strong penetration in thick material processing.
• Compact and Maintenance-Free Design: Modular integration for ease of use and low Total Cost of Ownership (TCO).
• Smaller Footprint with Greater Stability: Over 60% reduction in volume and enhanced system integration flexibility.
• High Level of Vertical Integration: In-house production of all core components ensures strict quality control, high consistency, and reliability.

Applications

• Telecommunications: Laser marking on patch cords, cables, and optical fibers.
• Sheet Metal Fabrication: Cutting and welding of steel sheets and tubes.
• Construction and Structural Fabrication: Laser processing on metal frames.
• Industries Served: Shipbuilding, Home Appliance Manufacturing, Petrochemical, Advertising, 3C Consumer Electronics, Scientific Research, Aerospace, Photovoltaics, Packaging, and Watchmaking.

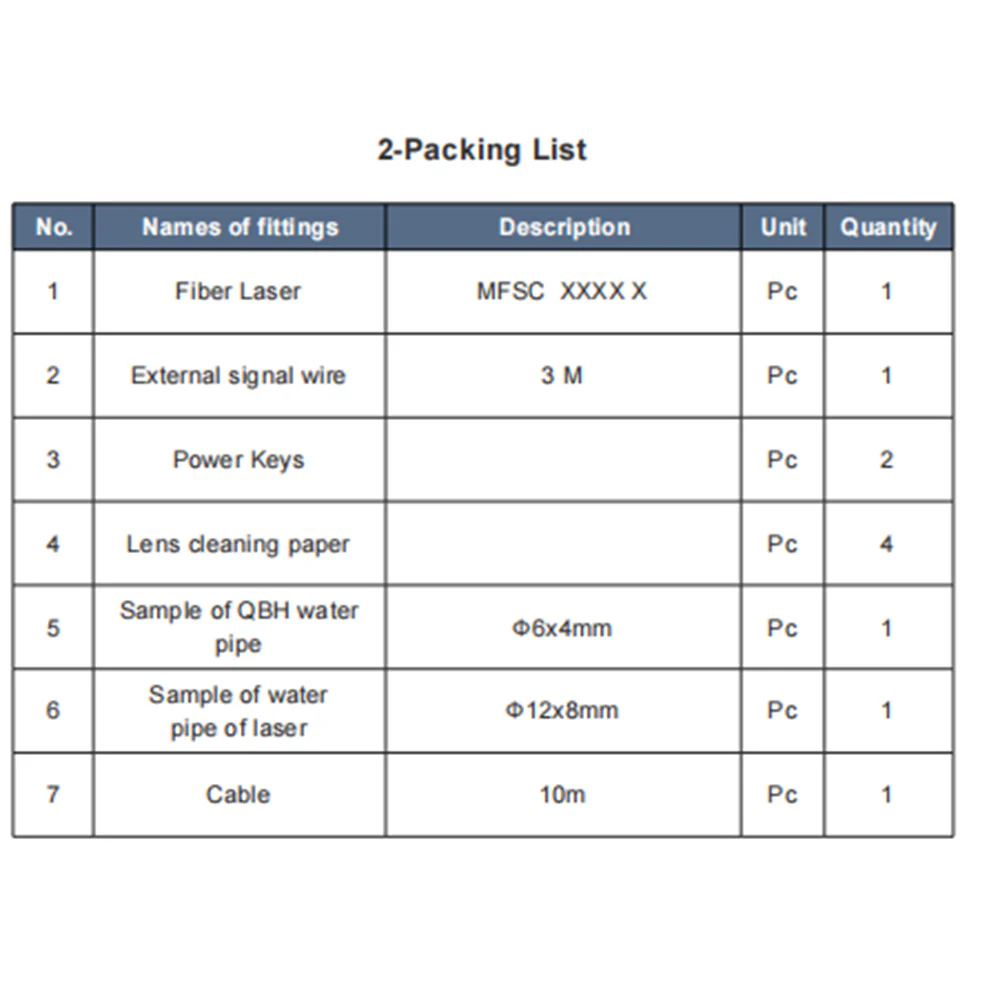

Package List

The standard package includes the following items:

• Fiber Laser – Model: MFSC XXXX X (1 Pc)
• External Signal Wire – Length: 3 meters (1 Pc)
• Power Keys – (2 Pcs)
• Lens Cleaning Paper – (4 Pcs)
• Sample of QBH Water Pipe – Size: Φ6×4 mm (1 Pc)
• Sample of Laser Water Pipe – Size: Φ12×8 mm (1 Pc)
• Cable – Length: 10 meters (1 Pc)
