UK-ZD15-3 Platform Laser Welding Machine: High-Precision Welding for Industrial Needs

UK-ZD15-3 Platform Laser Welding Machine: High-Precision Welding for Industrial Needs

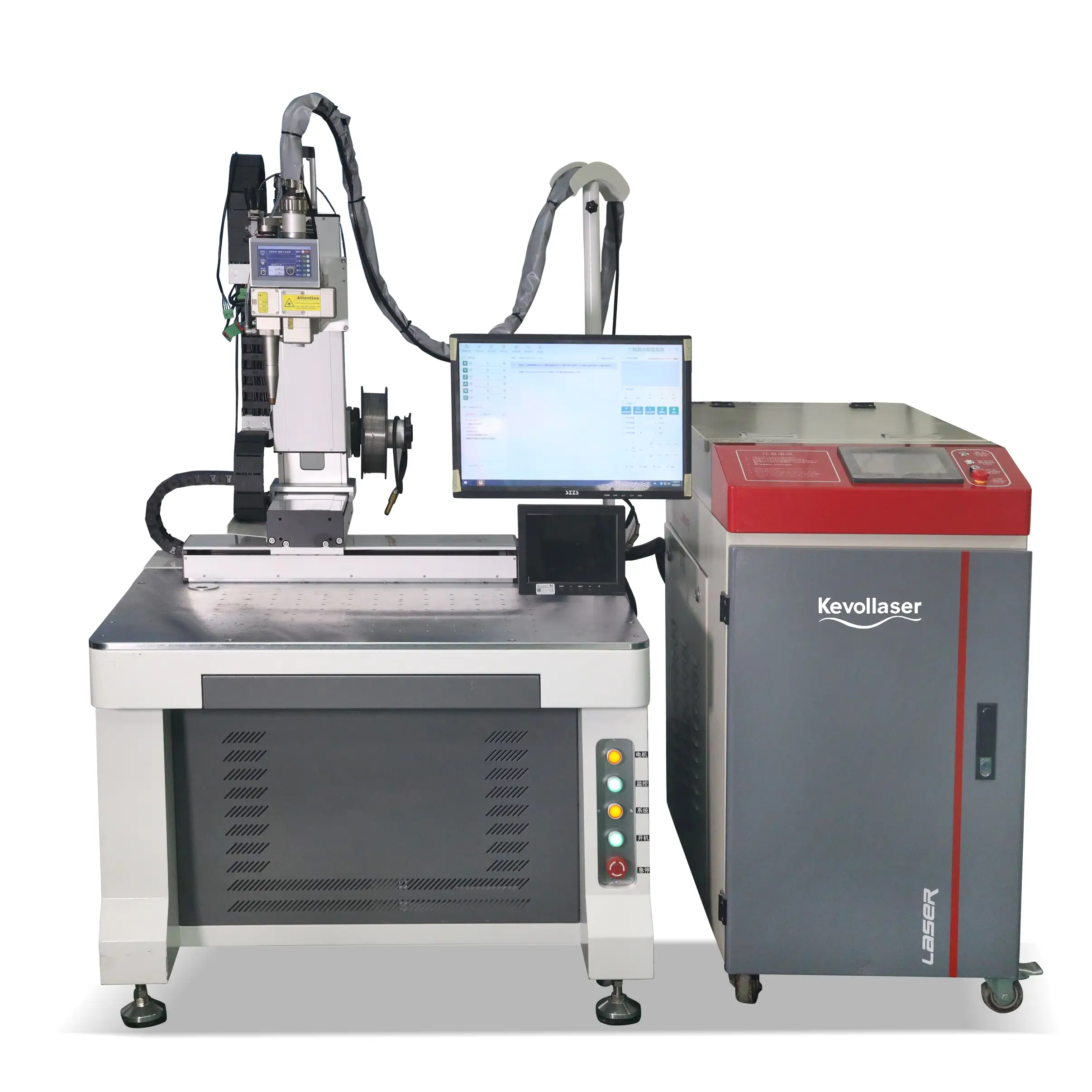

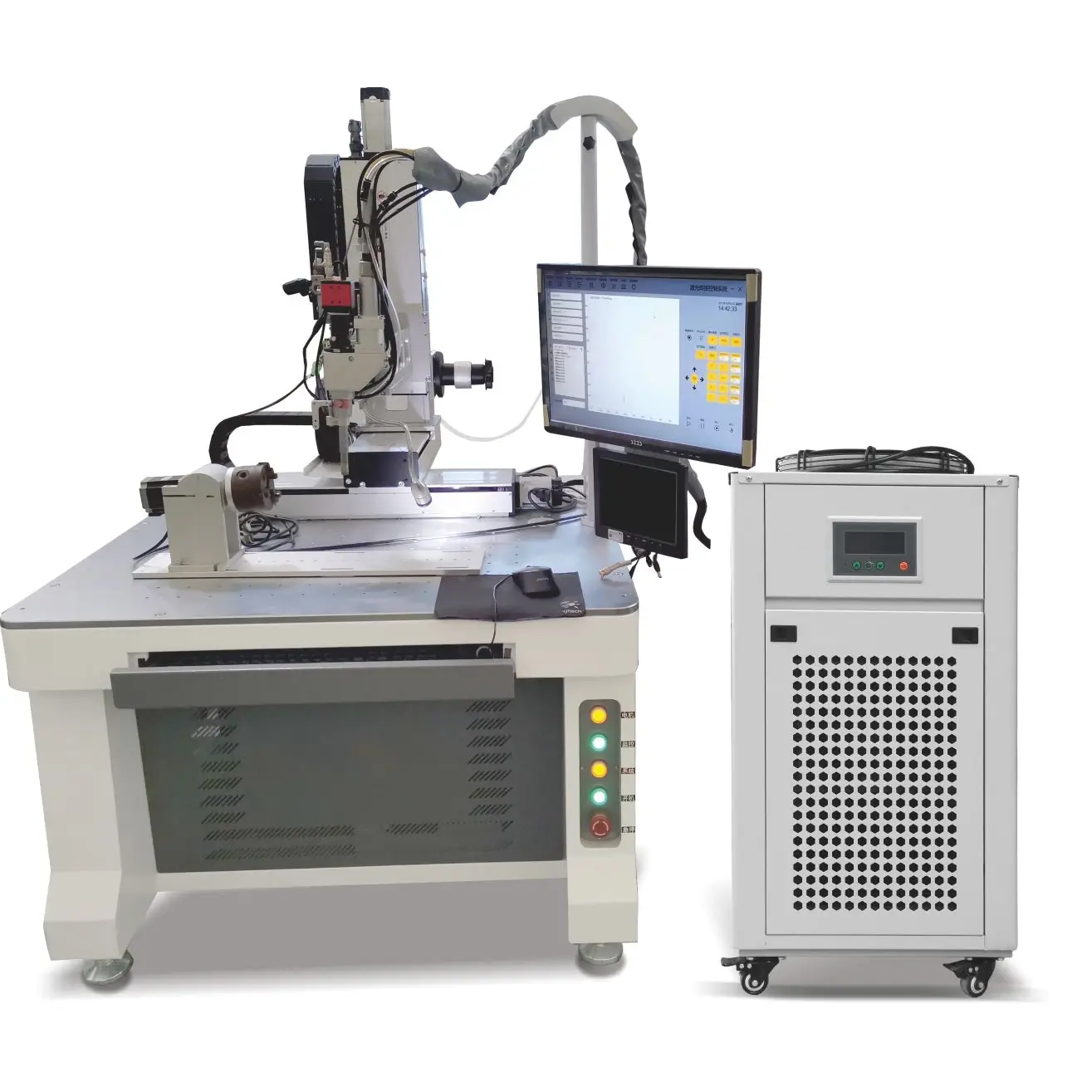

The UK-ZD15-3 Platform Laser Welding Machine is a professional-grade industrial welding solution designed for high-precision, efficient metal joining tasks. Equipped with a 1500W welding-specific laser (wavelength 1064-1080nm) and a 6-axis laser welding control system, this platform laser welding machine delivers stable performance with output power stability of ＜±1.5% (2h at 25°C) and power adjustment from 10% to 100%. Its core configuration includes a 1m×880mm steel table cabinet, three 500×300×300mm X/Y/Z modules driven by 400W servo motors, and a swing welding head (0-5mm adjustable swing range) for versatile joint handling. A 1500W laser-specific chiller ensures optimal cooling, while a high-definition CCD monitoring system enables real-time weld quality inspection. Suitable for welding steel, aluminum, and alloy components, it finds applications in automotive part manufacturing, electronic component assembly, hardware production, and precision engineering. Optional accessories like a horizontal 125 rotating axis and a welding head wire feeder further expand its capabilities for complex workpieces.

Key Features of UK-ZD15-3 Platform Laser Welding Machine

• Powerful laser performance: 1500W welding-specific laser with wavelength 1064-1080nm, continuous/modulated working modes, and max modulation frequency of 5kHz for diverse welding needs
• High-precision 6-axis control: Integrated 6-axis laser welding system with three 500×300×300mm X/Y/Z modules and 400W servo motors, ensuring smooth, accurate positioning
• Versatile swing welding head: 0—5mm adjustable swing range, QBH interface, and focus vertical adjustment of ±15mm, adapting to different joint types and material thicknesses
• Reliable cooling system: 1500W laser-specific chiller with 3.5kW cooling capacity, maintaining 25°C (laser module) and 30°C (QBH) for long-term stable operation
• Real-time quality monitoring: High-definition CCD monitoring system allows clear observation of the welding process, ensuring consistent weld quality
• Sturdy construction: 1m×880mm steel table cabinet provides a stable working platform, supporting heavy workpieces and reducing vibration during welding
• Flexible power adjustment: 10%-100% power调节 range with RS232/AD control, enabling precise power matching for different materials (e.g., steel, aluminum)
• Optional accessories: Compatible with horizontal 125 rotating axis (for circular workpieces) and welding head wire feeder (for filler wire welding), expanding application scope
• User-friendly operation: 19-inch custom display with dedicated keyboard and mouse, simplifying parameter setting and system control
• Durable optics: Equipped with high-quality collimating lens (D30F75), focusing lens (D30F200/250/300), and protective lens (D30T5), ensuring long service life and stable laser transmission

UK-ZD15-3 Platform Laser Welding Machine Technical Specifications

UK-ZD15-3 Platform Laser Welding Machine Quick Reference: 9 Core Parameters

• Laser power: 1500W welding-specific laser, supporting continuous/modulated working modes
• Control axes: 6-axis laser welding system with 3 sets of 400W servo motors for X/Y/Z motion
• Welding head swing range: 0—5mm adjustable, adapting to different joint configurations
• Cooling capacity: 3.5kW (chiller), maintaining 25°C (laser module) and 30°C (QBH)
• Cabinet size: 1m × 880mm steel table, providing a stable working platform
• Wavelength: 1064-1080nm (compatible with common metal materials)
• Power stability: ＜±1.5% (2h at 25°C) for consistent weld quality
• Focus adjustment: ±15mm vertical range for precise focus positioning
• Monitoring system: High-definition CCD for real-time welding process observation

Application Areas of UK-ZD15-3 Platform Laser Welding Machine

• Automotive Component Manufacturing: Welding of small-to-medium automotive parts (e.g., battery tabs, sensor housings, exhaust components) using its high precision and stable power output
• Electronic Component Assembly: Precision welding of electronic parts (e.g., connector pins, circuit board brackets, motor cores) where minimal heat input and accurate positioning are required
• Hardware Production: Joining of metal hardware (e.g., stainless steel hinges, aluminum handles, brass fittings) with the swing welding head ensuring strong, aesthetic welds
• Precision Engineering: Welding of complex precision components (e.g., medical device parts, aerospace fasteners) leveraging the 6-axis control for multi-angle welding
• Kitchenware & Sanitary Ware: Seam welding of stainless steel kitchenware (e.g., pots, pans) and sanitary ware (e.g., shower heads) with optional rotating axis for circular workpieces
• Sheet Metal Fabrication: Welding of thin to medium-thickness sheet metal (0.5-5mm) for enclosures, brackets, and structural parts, with adjustable power matching material thickness
• Battery Industry: Welding of lithium-ion battery cells, tabs, and packs (e.g., EV battery modules) using low-heat-influence laser parameters to avoid thermal damage
• Custom Metal Processing: Flexible handling of custom workpieces (e.g., decorative metal parts, industrial fixtures) with optional wire feeder for filler wire welding of gaps or thick materials
