Precision Cutting Machine: High-Accuracy Solutions for Industrial Cutting Needs

Precision Cutting Machine: High-Accuracy Solutions for Industrial Cutting Needs

Our Precision cutting machine lineup includes two core series: the CFZ series precision fiber optic cutting machine and the CFG series precision laser pipe cutting machine, designed to deliver exceptional accuracy, speed, and stability for various industrial applications. The CFZ series, available in standard and neodymium-iron-boron (NdFeB) industry-specific models, features repeat positioning accuracy as low as <0.01mm, maximum composite speed of 60 meters per minute, and maximum acceleration of 2.0G, ensuring high-efficiency cutting. The CFG series, tailored for pipe cutting, adopts an XYZAC 5-axis design and precision pneumatic chucks, supporting cutting of capillaries, corrugated pipes, round pipes, square pipes, and special-shaped pipes.

These Precision cutting machines are built with high-quality components, such as aviation aluminum cast beams and slides, and natural Jinan green granite structural parts for the CFZ series, ensuring no deformation and long-term stability. They serve industries including NdFeB manufacturing, metal processing, automotive parts production, and hardware manufacturing, providing customized tooling, process library support, and after-sales service to enhance customers’ product competitiveness and cost efficiency.

Product Features

• Superior precision: X/Y axis repeat positioning accuracy down to <0.01mm (for NdFeB-specific CFZ models) ensures high cutting precision
• High-speed operation: Maximum composite speed of 60 meters per minute and 2.0G maximum acceleration (CFZ series) for efficient production
• Stable structure: Natural Jinan green granite bed (CFZ series) and aviation aluminum cast beams prevent deformation and ensure long-term stability
• Flexible compatibility: Laser power options range from 100W to 6000W (CFZ series) and 150W to 3000W (CFG series) to meet different cutting needs
• Specialized designs: NdFeB industry-specific CFZ models and CFG series’ 5-axis design for pipes (round, square, special-shaped) enhance application adaptability
• Automation support: Optional automatic loading devices (CFZ series) and automatic loading/unloading via precision pneumatic chucks (CFG series) save labor
• High-quality components: Adopts world-class brand parts (e.g., YASKAWA, SIEMENS, HIWIN) to ensure durability and reliable performance
• Safety protection: Laser radiation prevention design (CFZ series) ensures safe operation in industrial environments
• Comprehensive support: Offers customized tooling, laser cutting process library, operation training, and after-sales service for full-cycle assistance

Product Specification Table

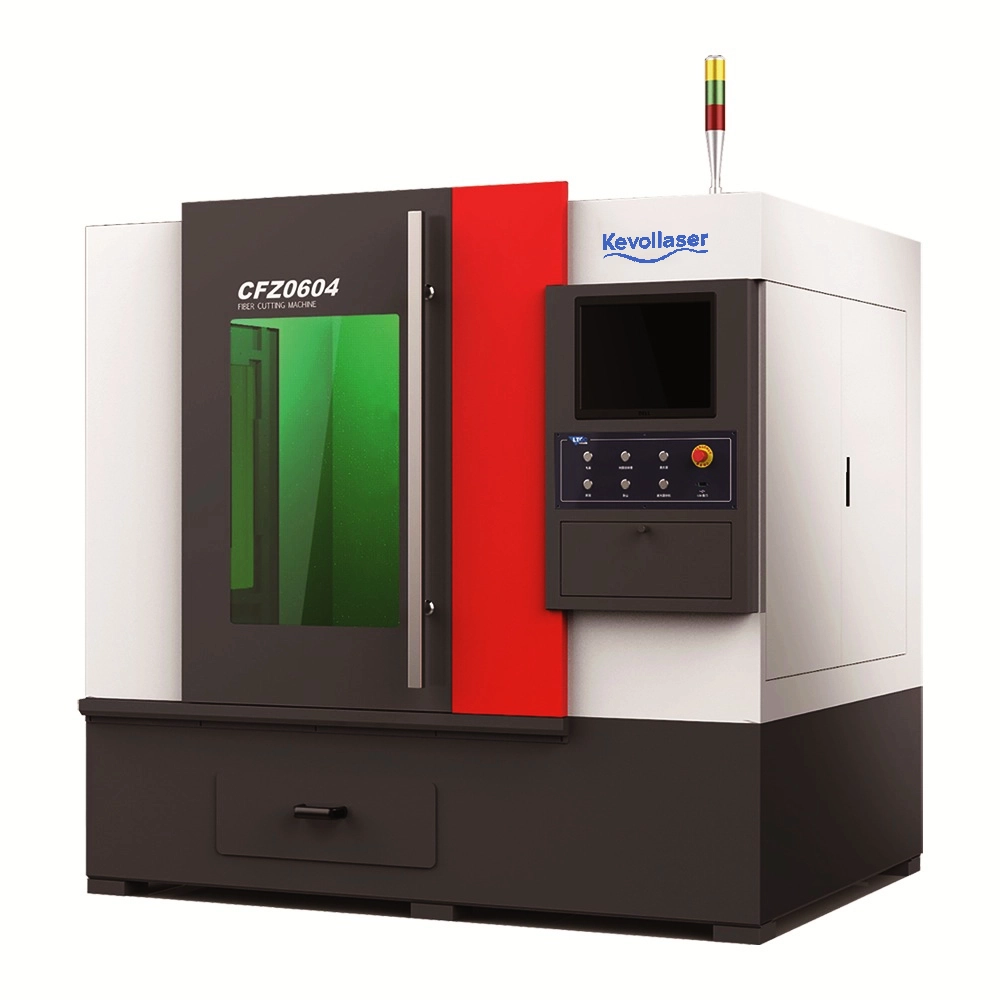

CFZ Series Precision Fiber Optic Cutting Machine (Standard Models)

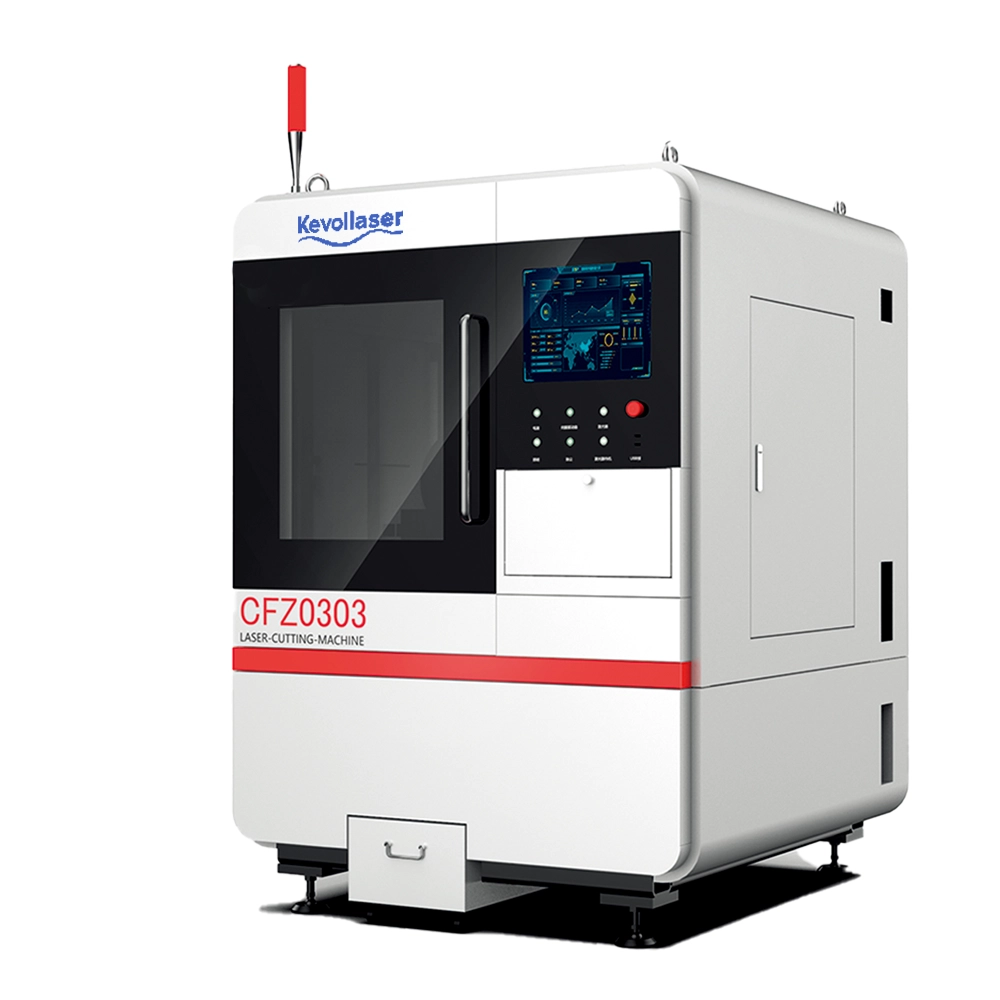

CFZ Series Precision Fiber Optic Cutting Machine (NdFeB Industry-specific Models)

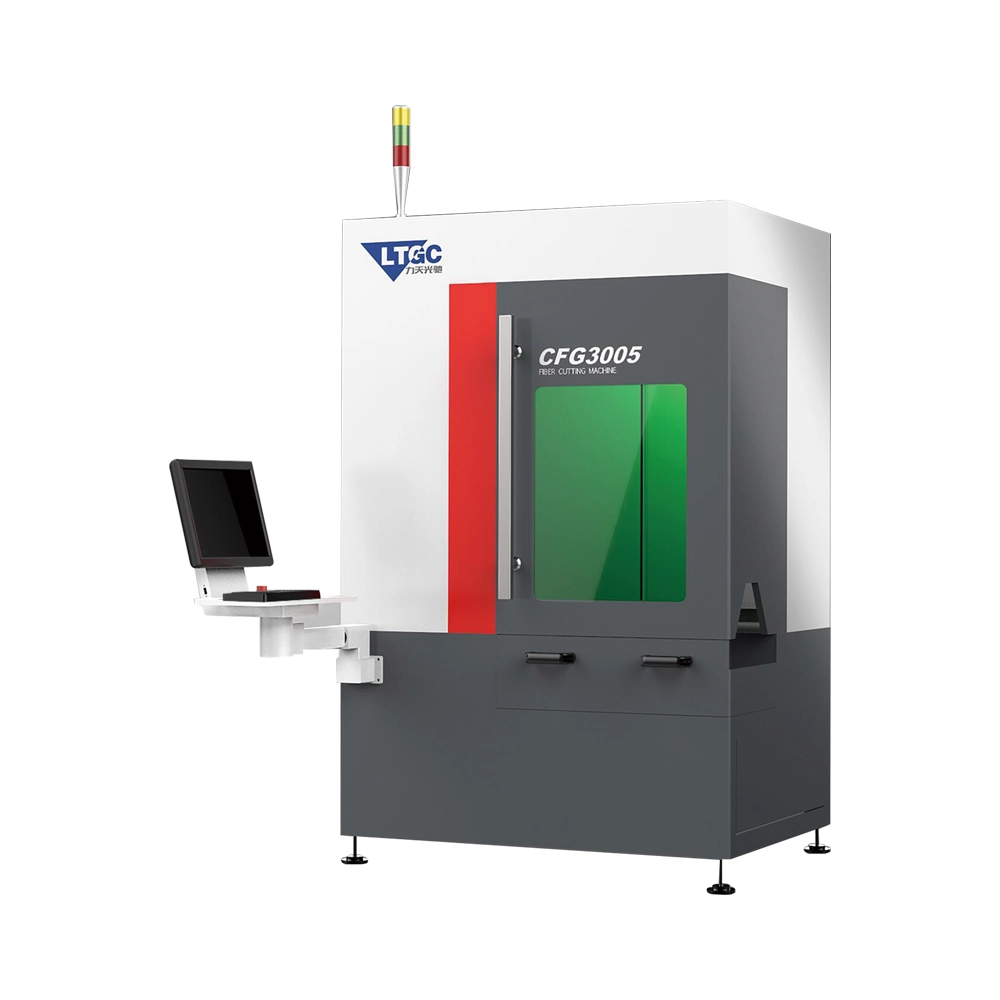

CFG Series Precision Laser Pipe Cutting Machine

Brief Description of Basic Parameters

• Processing Area: Ranges from 300mm×300mm (CFZ0303P) to 1500mm×600mm (CF21506) for fiber cutting; 200mm×30mm to 200mm×60mm (CFG series) for pipe cutting
• X/Y-axis Repeat Positioning Accuracy: As low as <0.01mm (NdFeB-specific CFZ models) and up to 0.02mm (CFG series)
• Maximum Composite Speed: 60 m/min (CFZ series) and 30 m/min (CFG series) for efficient cutting
• Maximum Acceleration: 2.0G (CFZ series) and 1.0G (CFG series) for fast response
• Laser Power Range: 100-6000W (standard CFZ), 500-3000W (NdFeB CFZ), 150-3000W (CFG) to match diverse needs
• Z-axis Stroke: Uniform 50mm across all CFZ and CFG models for consistent vertical adjustment
• Machine Weight: 800KG (CFG series) to 5200KG (CF21506) based on model size and capacity
• Chuck Load Capacity: 50KG (CFG Model 2) to 5200KG (CF21506) for different workpiece weights
• Core Structure: Natural Jinan green granite (CFZ bed), aviation aluminum cast parts (all CFZ), and XYZAC 5-axis design (CFG)

Application Fields

• NdFeB Industry: Precision cutting of NdFeB materials using CFZ series NdFeB-specific models (CFZ0303P, CF20604P)
• Metal Sheet Processing: Cutting of metal sheets (e.g., steel, aluminum) with CFZ standard models (CF20604, CF20806, CF21506)
• Pipe Manufacturing: Cutting of capillaries, corrugated pipes, round pipes, square pipes, and special-shaped pipes via CFG series
• Automotive Industry: Production of automotive parts requiring high-precision cutting (e.g., small metal components, pipe fittings)
• Hardware Industry: Manufacturing of hardware products (e.g., brackets, connectors) with accurate and fast cutting
• Electronics Industry: Cutting of small metal parts for electronic devices (e.g., sensors, connectors) using high-precision CFZ models
• Aerospace Industry: Processing of lightweight metal components with strict precision requirements (supported by CFZ’s stable structure)
• Medical Device Industry: Production of medical equipment parts (e.g., small metal fittings) needing ultra-high accuracy
• Renewable Energy Industry: Cutting of metal components for solar panels, wind turbine parts, and energy storage devices
