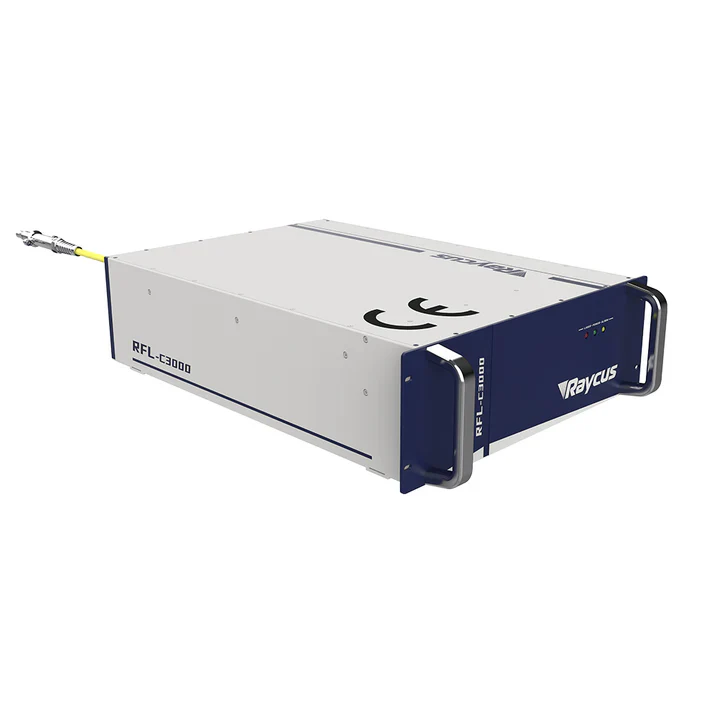

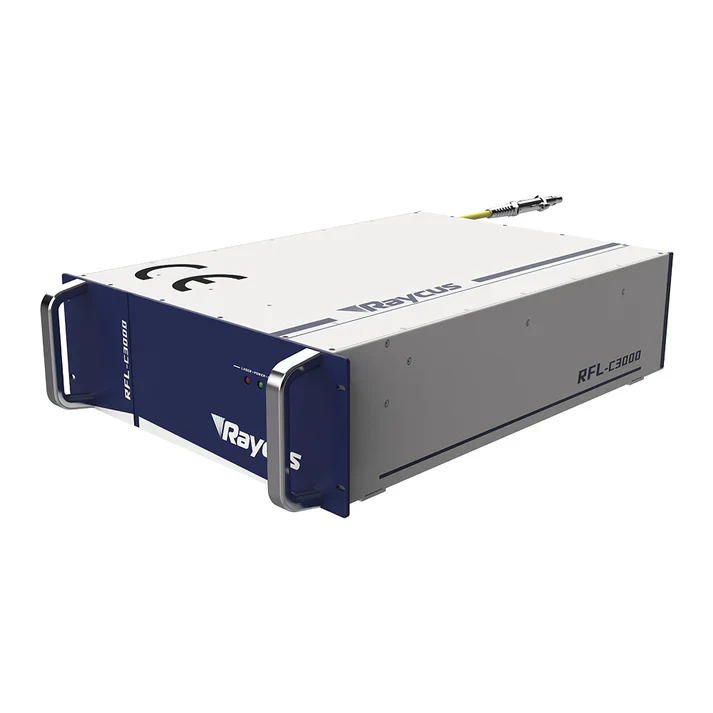

Raycus RFL-C3000 3000W Single Module CW Fiber Laser Source
Introduction
The Raycus 3000W Single Module Continuous Wave Fiber Laser is a high-performance industrial laser designed for precision applications such as metal cutting, welding, cladding, and other materials processing tasks. With superior beam quality, high modulation frequency, and strong power control, it offers exceptional stability and high-efficiency operation even under challenging industrial conditions.
Features
- Excellent Beam Quality with high electro-optical conversion efficiency
- High Modulation Frequency up to 50 kHz for precise response
- Integrated Power Control system ensuring fast and stable power output
- Wide Compatibility with various laser systems and communication interfaces
- Low Maintenance Design for continuous industrial usage
- Compact Structure enabling easier system integration

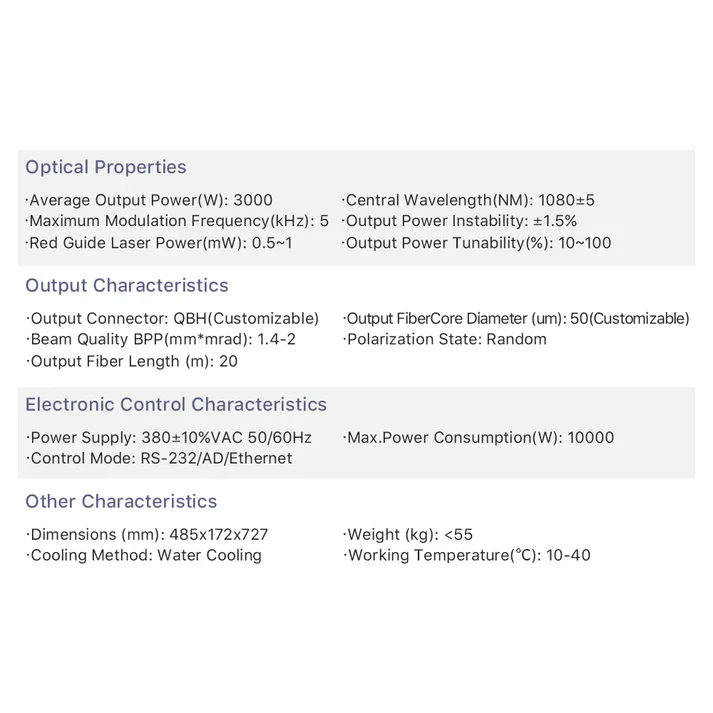

Parameters
| Item | Specification |
| Nominal Power | 3000W |
| Operating Mode | CW / Modulation |
| Center Wavelength | 1080 ±10 nm |
| Output Fiber Core Diameter | 50μm (default) |
| Output Fiber Length | 20m (customizable) |
| Power Tunability Range | 10–100% |
| Max Modulation Frequency | 50kHz |
| Beam Quality (BPP) | ≤2.5 mm·mrad |
| Output Power Stability | ±1.5% |
| Control Interface | RS232 / Ethernet |
| Cooling Method | Water cooling |
| Dimension (L×W×H) | 737mm × 482mm × 177mm |
| Weight | Approx. 66 kg |
Applications
- Metal Cutting: Efficiently cuts stainless steel, carbon steel, aluminum, brass, and more
- Welding: Precision welding in automotive, aerospace, shipbuilding, and construction industries
- Cladding and Surface Treatment: In mold repair, wear-resistant coating, etc.
- Tube and Sheet Metal Fabrication
- Widely used in industries including hardware, furniture, machinery, home appliances, 3C electronics, advertising, tooling, and aerospace
Package List
- 3000W Fiber Laser Unit – 1 Pc
- External Signal Cable – 1 Pc
- Power Cable – 1 Pc
- Control Card Kit – 1 Set
- User Manual – 1 Copy
- Certificate of Conformance – 1 Copy
- Lens Cleaning Kit – 1 Set
