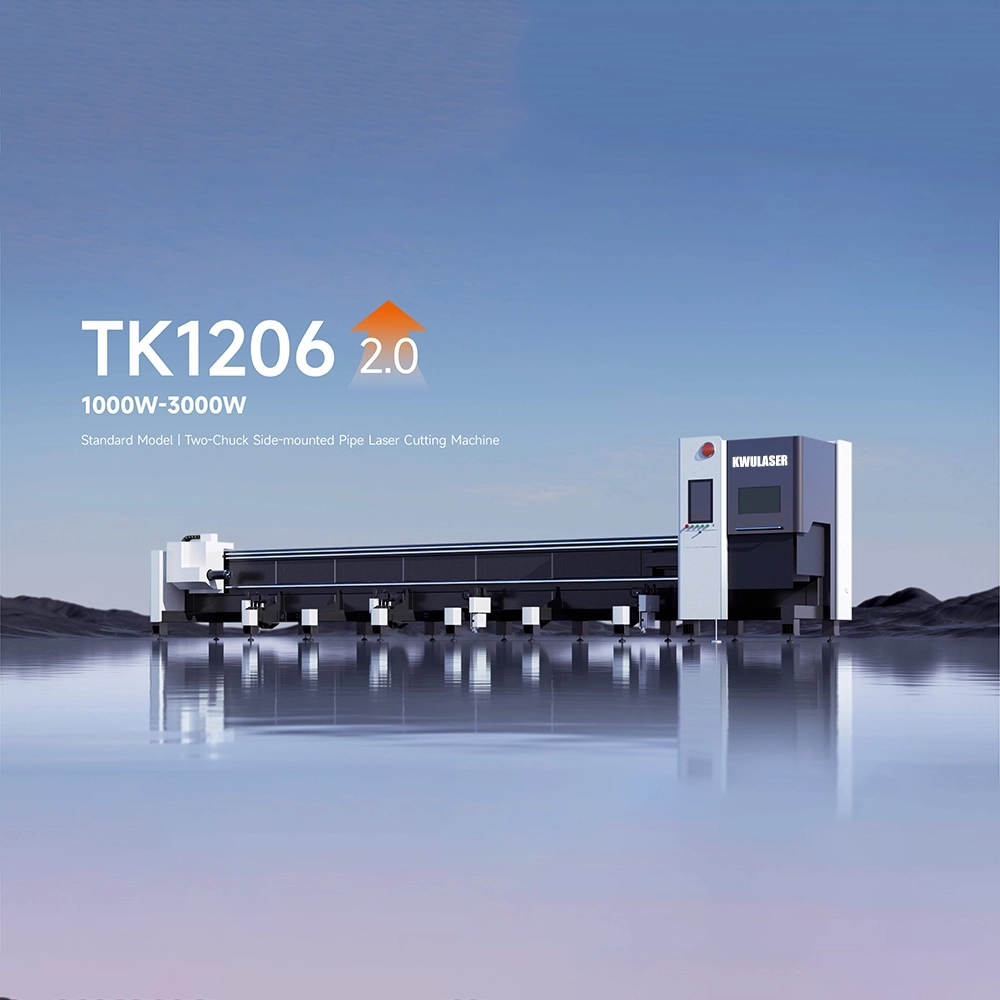

Kevollaser TK Series Side-mounted Laser Cutting Machine Multi Laser Source 1000W – 3000W

Kevollaser TK Series Side-mounted Laser Cutting Machine Multi Laser Source 1000W – 3000W

Product Introduction

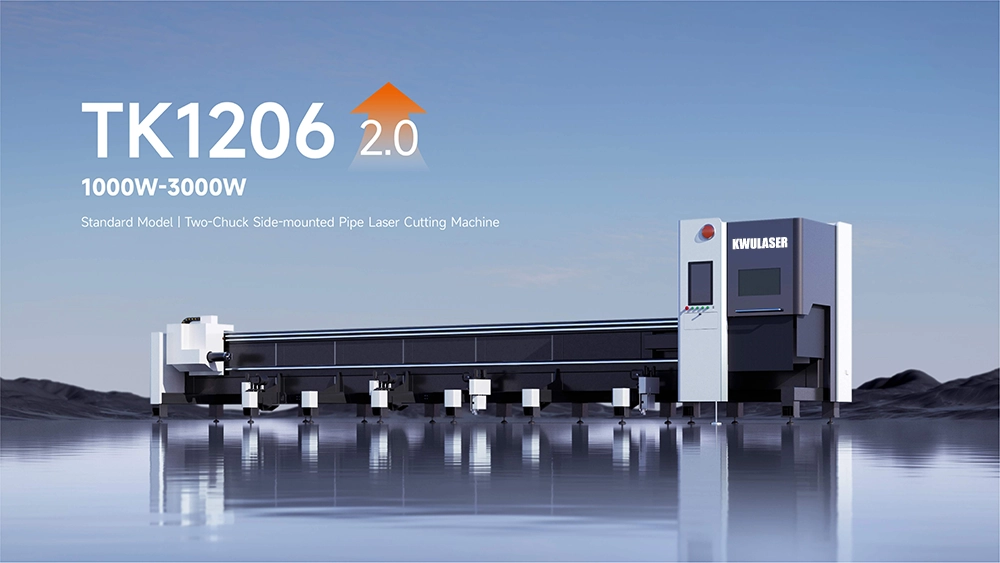

The Kevollaser TK Series Side-mounted Laser Cutting Machine is a specialized pipe processing solution engineered for high-speed, high-precision cutting of small to medium diameter pipes. As a premium side-mounted laser cutting machine, it features a innovative side-mounted body structure and two-chuck design, optimized for processing round, square, and rectangular tubes up to 6.5m in length. With laser power options from 1000W to 3000W, this machine delivers exceptional cutting performance, boasting a maximum feed speed of 150m/min and chuck speed of 200r/min (Kevollaser-TK90-6 model) for efficient mass production.

Equipped with servo motor drive and four-roller support, it ensures stable feeding of 3-meter short pipes and minimizes tail material waste, increasing material utilization rate by 12%. The intelligent control system with bus technology enables real-time synchronized feedback, while the collision avoidance function protects the cutting head. Suitable for diverse tube types and offering semi-automatic loading as standard (automatic feeding optional), this side-mounted laser cutting machine is perfect for fitness equipment manufacturing, guardrail production, medical device fabrication, and hardware bathroom industries. It combines speed, accuracy, and versatility to meet the demands of industrial pipe processing.

Product Features

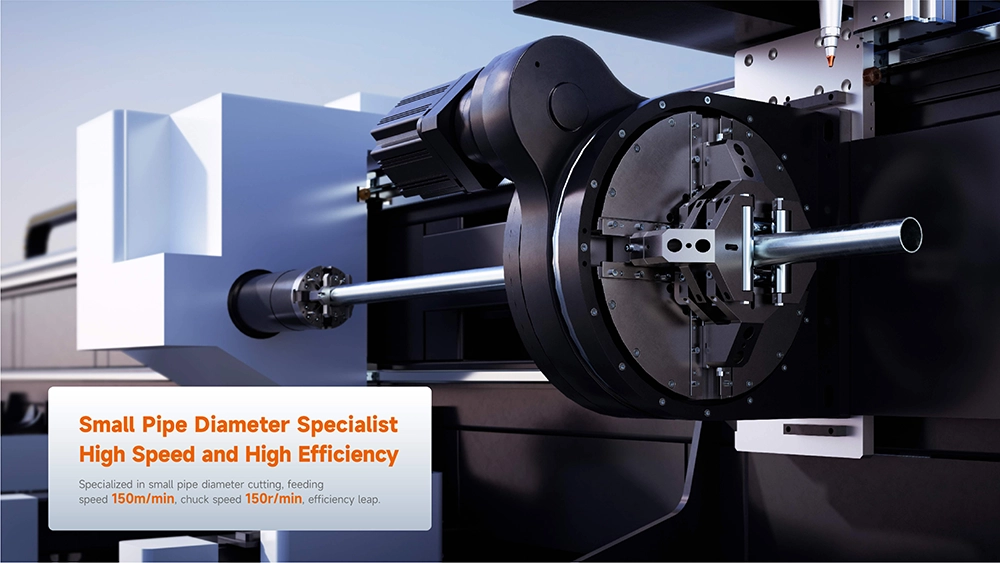

• Specialized small pipe processing: Optimized for small diameter tubes, with clamping range of 10-80mm (Kevollaser-TK90-6) and 10-120mm (Kevollaser-TK120-6)
• High-speed operation: 150m/min maximum feed speed and 150-200r/min chuck speed for efficient mass production

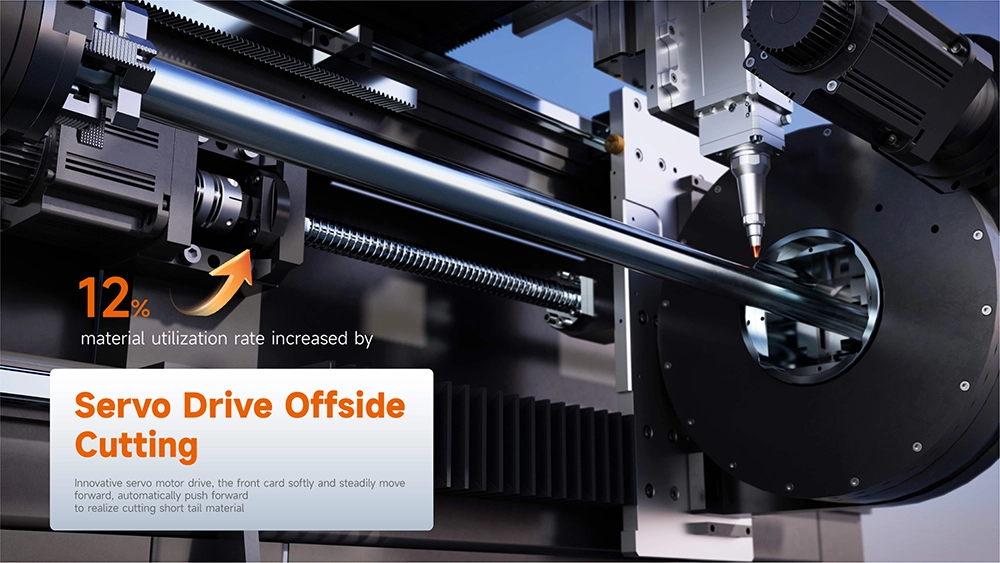

• Enhanced material utilization: Servo drive offside cutting reduces short tail material, increasing utilization rate by 12%

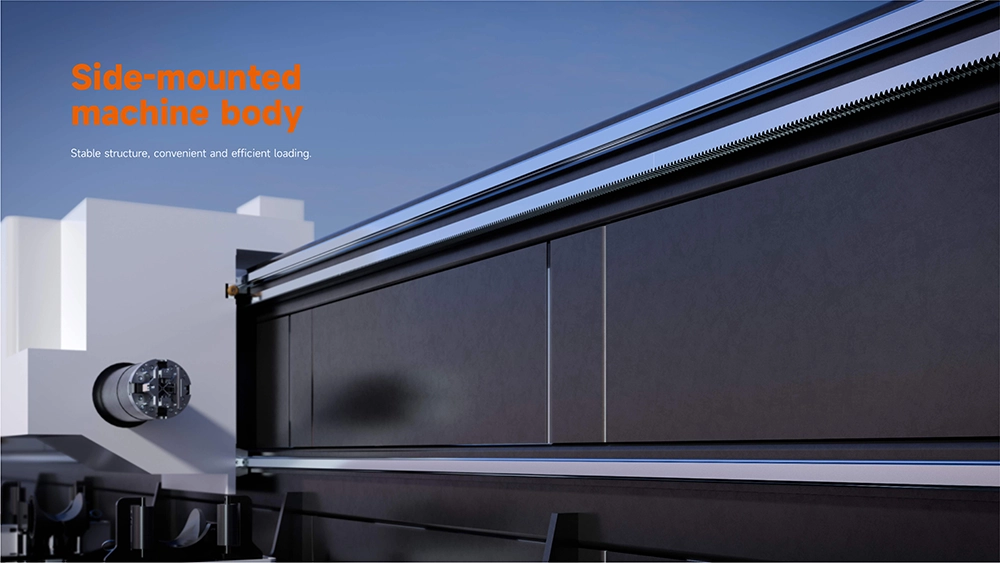

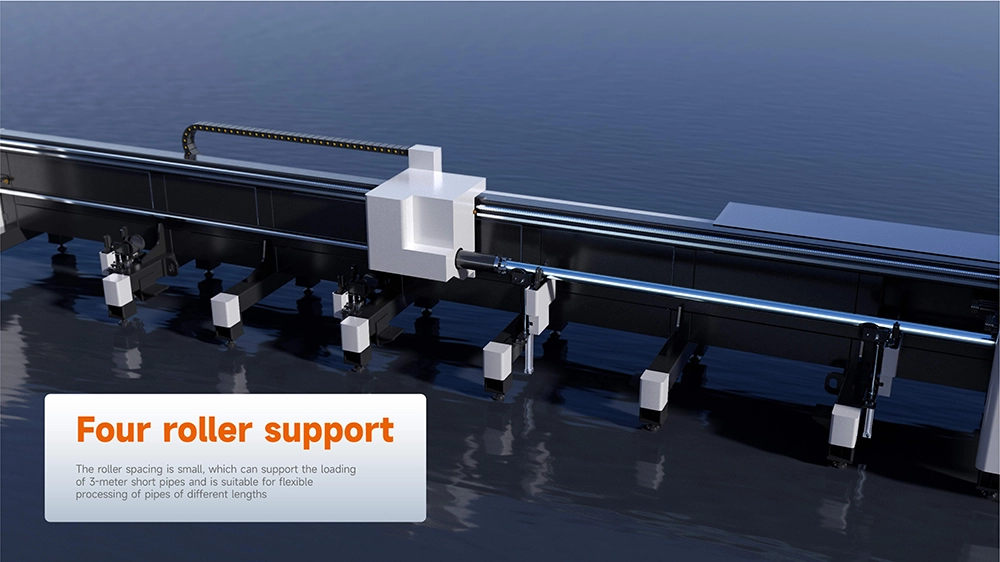

• Stable side-mounted structure: Side-mounted machine body and four-roller support ensure stability for 3-meter short pipes and flexible length processing

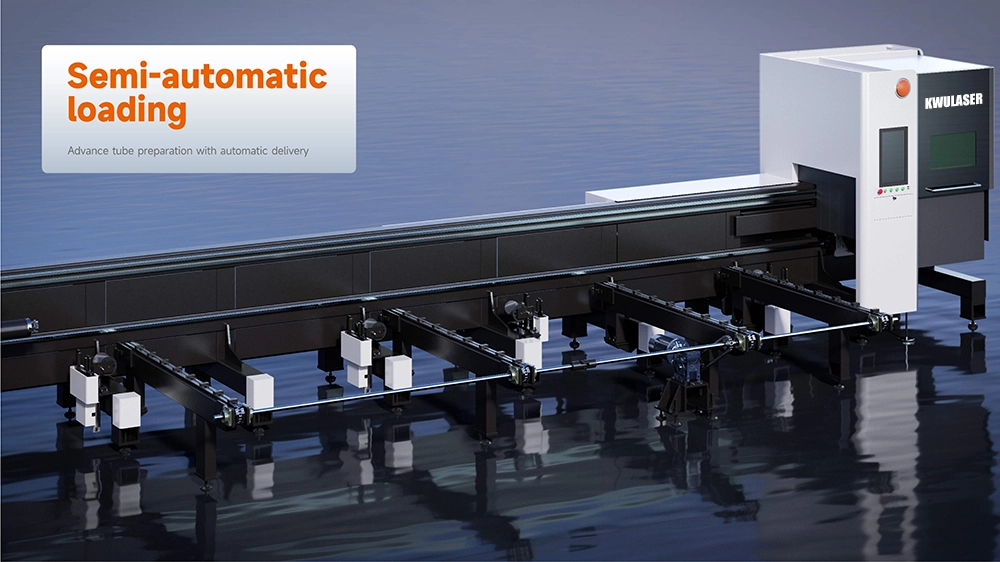

• Semi-automatic loading: Advanced tube preparation with automatic delivery, reducing manual intervention (automatic feeding optional for batch processing)
• Multi-tube type compatibility: Cuts round, square, and rectangular tubes up to 6.5m in length
• Intelligent fault alert: Self-developed audible and visual synchronized alarm for instant fault detection and prompt handling
• Neat water/air circuits: Rationalized line arrangement for easy maintenance and reliable operation

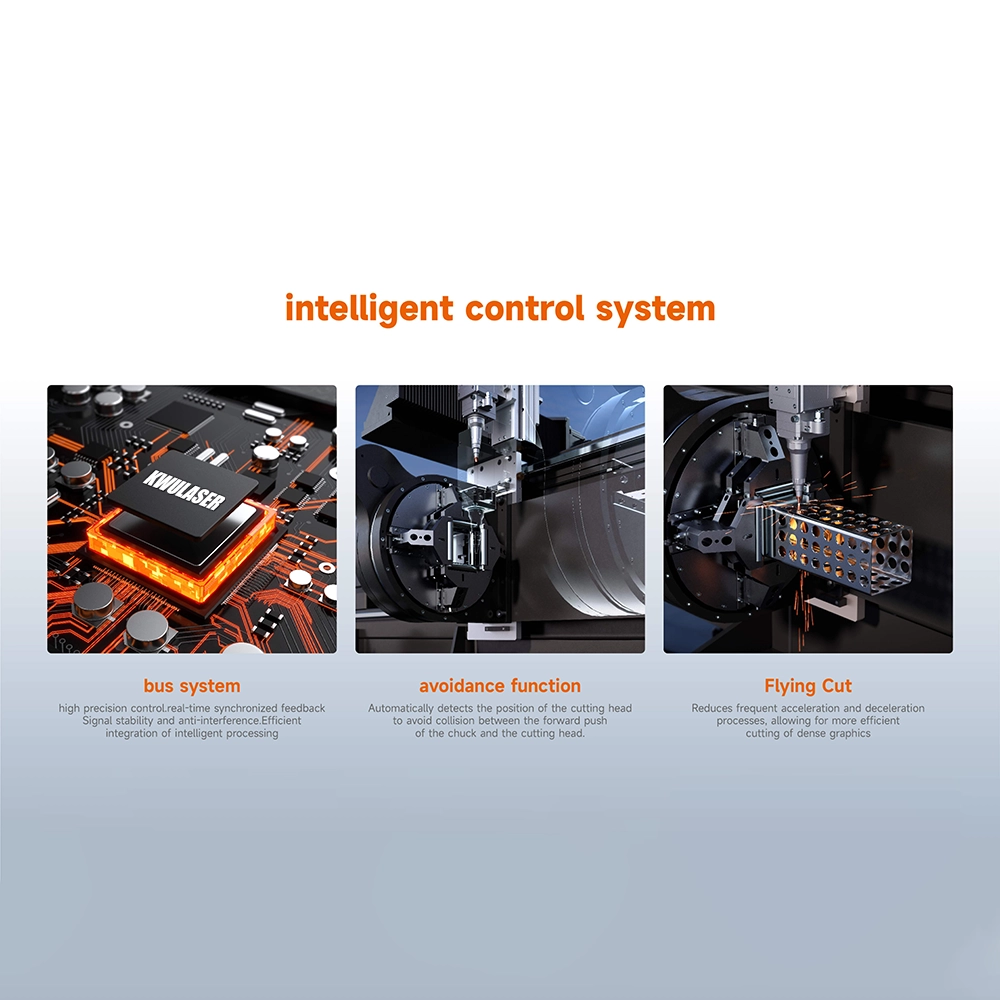

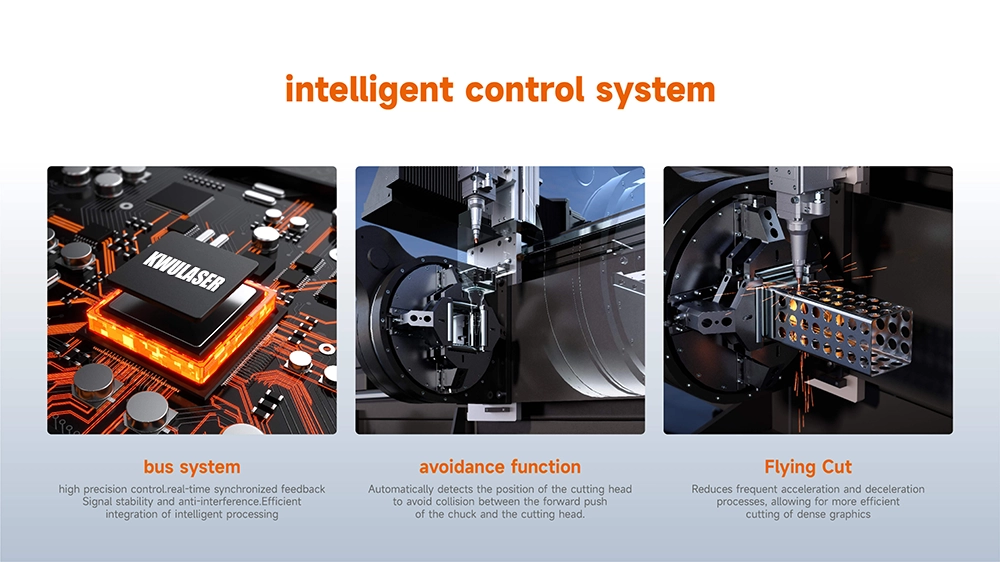

• Collision avoidance function: Automatically detects cutting head position to prevent collisions between chuck and cutting head
• Flying cut technology: Reduces frequent acceleration/deceleration for efficient cutting of dense graphics
• High precision control: Bus system enables real-time synchronized feedback with ±0.03mm positioning accuracy

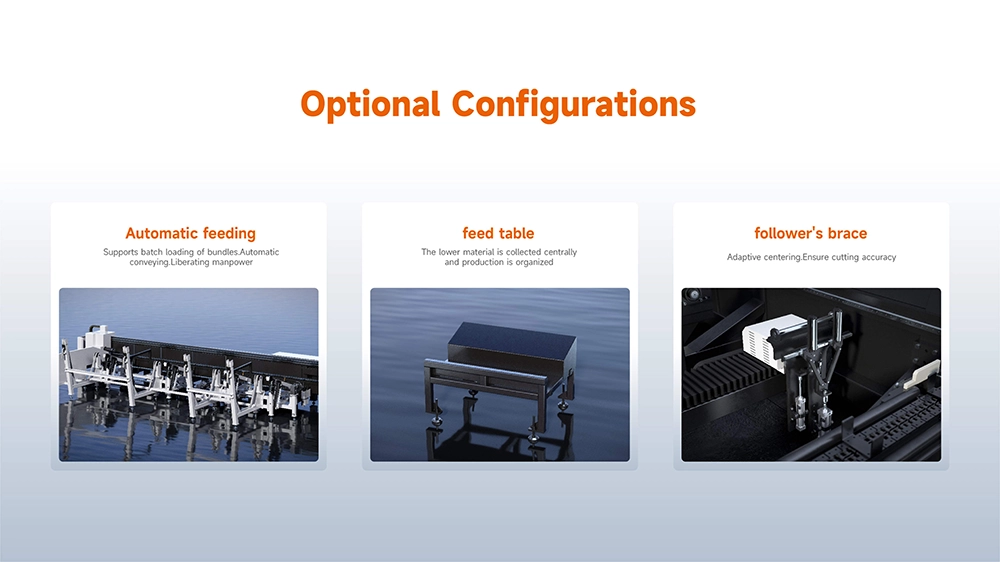

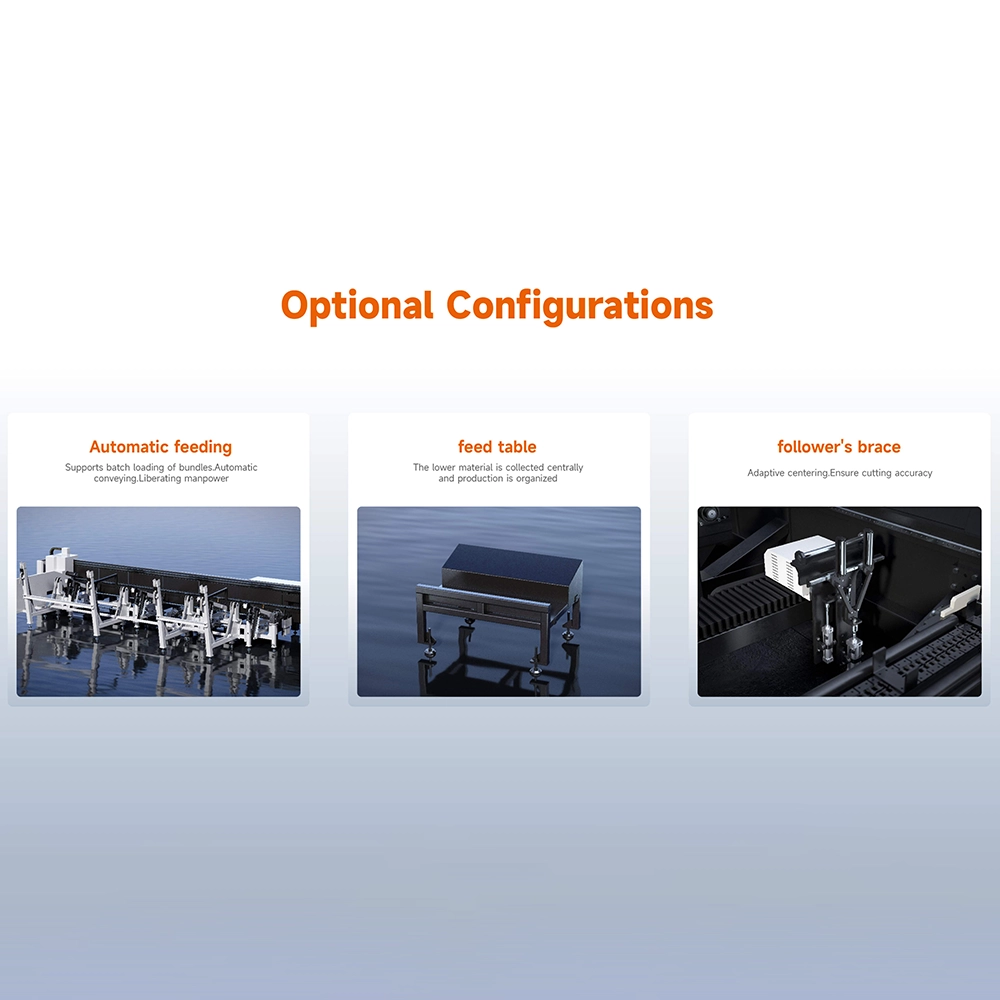

• Optional configurations: Automatic feeding, feed table for centralized collection, and follower’s brace for adaptive centering

Product Specification Table

<<<<<<

Brief Description

• Product: Kevollaser TK Series Side-mounted Laser Cutting Machine
• Models: Kevollaser-TK90-6 / Kevollaser-TK120-6
• Laser Power: 1000W-3000W
• Clamping Range: 10-80mm / 10-120mm
• Feed Speed: Max 150m/min
• Positioning Accuracy: ±0.03mm/m
• Processable Tubes: Round/Square/Rectangular (Up to 6.5m)
• Core Features: Flying Cut, Collision Avoidance, 12% Higher Material Utilization
• Machine Weight: 3800kg (Excluding Water Cooler)

Application Areas

This high-performance side-mounted laser cutting machine is designed for pipe processing across diverse industries, including:

• Fitness Equipment Industry: Cutting pipes for dumbbells, exercise bikes, and gym rack structures
• Guardrail Industry: Fabricating metal guardrails for roads, buildings, and public spaces
• Medical Device Industry: Processing precision pipes for medical instruments and equipment
• Hardware & Bathroom Industry: Manufacturing pipe components for faucets, showerheads, and hardware fittings
• Advertising & Logo Industry: Cutting custom-shaped pipes for signage and decorative displays
• Technology & Education Office Industry: Producing pipe-based office furniture and educational equipment
• Automotive Accessories: Fabricating small-diameter pipe parts for automotive interiors and exteriors
• Construction & Decoration: Cutting pipes for architectural decorations and structural components
