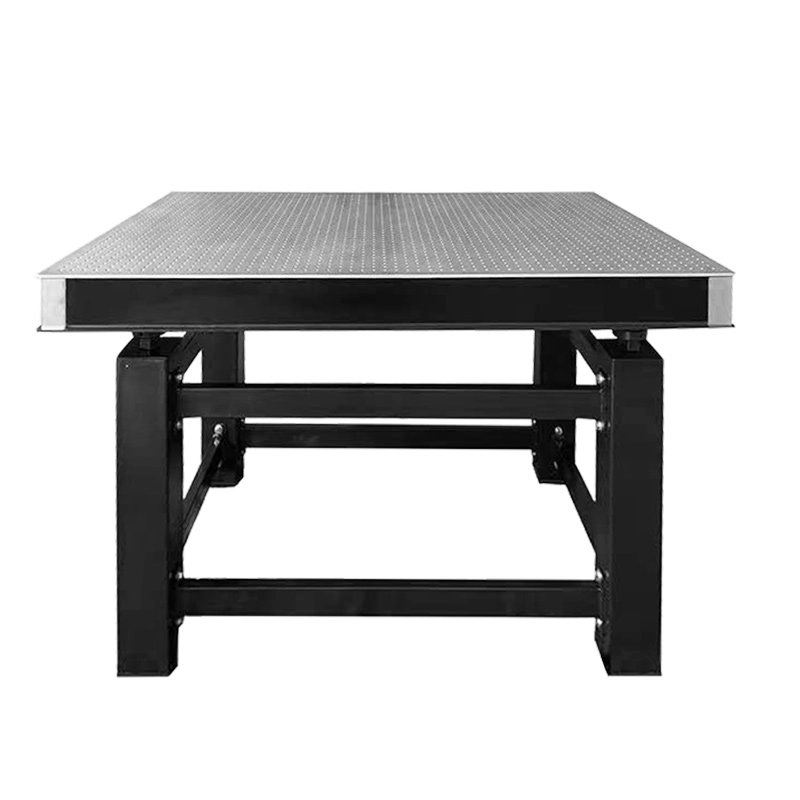

Optical Platform Experimental Platform Optical Stainless Steel Honeycomb Panel Scientific Equipment Honeycomb Anti-vibration Platform
Brief Description

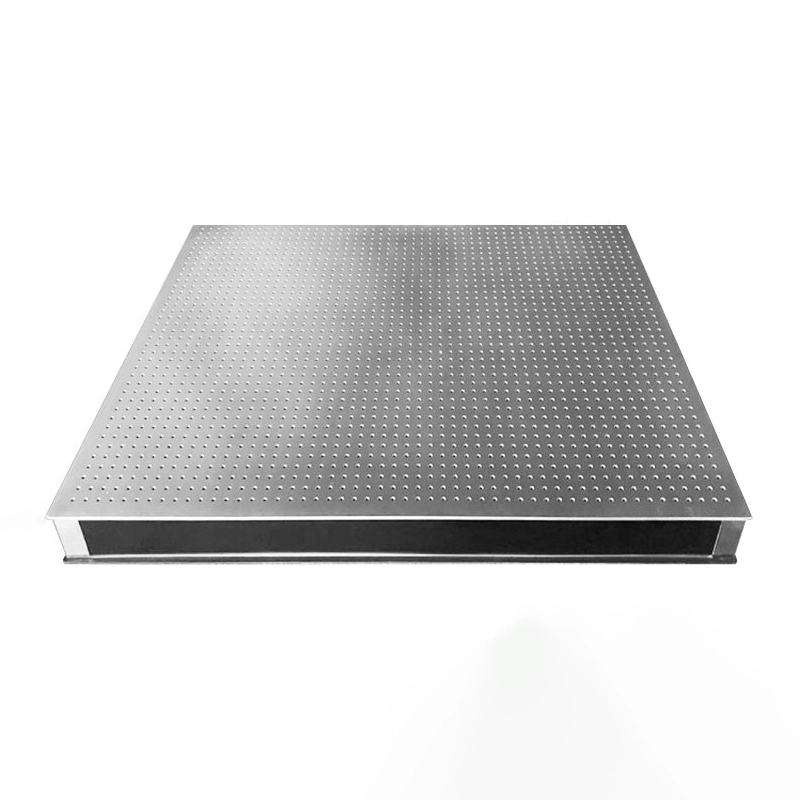

- Product: Stainless Steel Honeycomb Panel
- Structure: 3-layer Honeycomb Core
- Top Layer: 6.0mm 430 Stainless Steel (Sandblasted)
- Flatness: ≤0.02mm per 600mm×600mm
- Load Capacity: 800KG/m²
- Mounting Holes: M6 (25MM Grid)
- Natural Frequency: 3.5~6HZ
- Customization: Supported (Shapes/Holes)
- Weight (100MM Thick): ~120KG/M2
Optical Platform Experimental Platform Optical Stainless Steel Honeycomb Panel Scientific Equipment Honeycomb Anti-vibration Platform
Product Introduction
The Stainless Steel Honeycomb Panel is a high-performance work surface engineered for precision-focused environments like labs, industrial workshops, and equipment stations. As a premium stainless steel honeycomb panel, it features a 3-layer honeycomb core structure that balances rigidity, vibration damping, and load capacity—critical for sensitive operations. Its 6.0mm 430-series high-magnetic permeability stainless steel top layer (sandblasted finish) ensures durability and easy cleaning, while 2.0mm carbon steel-wrapped, high-damping wood side walls (with polyethylene outer trim) minimize vibration.
With a maximum load of 800KG/m², ≤0.02mm flatness per 600mm×600mm, and 3.5~6HZ natural frequency, this panel provides ultra-stable support for precision instruments, laser systems, or heavy industrial tools. It includes M6 screw holes (25mm grid, 37.5mm edge) and cup-shaped seals for easy installation and maintenance, plus customizable options (special holes, shapes, etc.) to fit unique needs. Perfect for optical labs, semiconductor manufacturing, or heavy-equipment workstations, this stainless steel honeycomb panel combines stability, versatility, and durability to elevate precision and safety in high-demand settings.
Product Features
- 3-layer honeycomb core structure: Delivers optimal rigidity, vibration damping, and load-bearing performance
- Durable stainless steel top: 6.0mm 430-series high-magnetic permeability stainless steel (sandblasted finish) for wear resistance and easy cleaning
- High-damping side walls: 2.0mm carbon steel-wrapped wood (polyethylene trim) minimizes vibration for precision operations
- Ultra-high flatness: ≤0.02mm per 600mm×600mm ensures stable support for precision instruments
- Heavy load capacity: 800KG/m² supports heavy equipment or industrial tools
- Standardized mounting: M6 screw holes (25mm grid, 37.5mm edge) for easy installation
- Low-maintenance design: Cup-shaped seals (25mm depth) keep screw holes/cores clean and protected
- Customizable configurations: Supports special holes, shapes, or instrument access ports for unique requirements
- Vibration-damping performance: 3.5~6HZ natural frequency and <5MM amplitude reduce operational interference
Product Specification Table
<<
| Specification Item</ | Details</ |
|---|---|
| Structure | 3-layer Honeycomb Core Structure |
| Top Layer | 6.0mm 430-series High-Magnetic Permeability Stainless Steel (Sandblasted Surface) |
| Side Walls | 2.0mm Carbon Steel-Wrapped High-Damping Wood (Polyethylene Outer Trim) |
| Natural Frequency | 3.5~6HZ (varies by experimental environment) |
| Flatness | ≤0.02mm per 600MM*600MM |
| Mounting Holes | M6 Screw Holes (25MM Grid, 37.5MM Edge) |
| Seal Type | Easy-Clean Cup-Shaped Seal (25MM Depth) |
| Damping Type | Breadboard Standard Damping |
| Custom Shapes | Supported (special holes, shapes, instrument ports, etc.) |
| Load Capacity | 800KG/m² |
| Amplitude | <5MM |
| Weight | 100MM thick: ~120KG/M2; 200MM thick: ~140KG/M2; 300MM thick: ~160KG/M2 |
Brief Description
- Product: Stainless Steel Honeycomb Panel
- Structure: 3-layer Honeycomb Core
- Top Layer: 6.0mm 430 Stainless Steel (Sandblasted)
- Flatness: ≤0.02mm per 600mm×600mm
- Load Capacity: 800KG/m²
- Mounting Holes: M6 (25MM Grid)
- Natural Frequency: 3.5~6HZ
- Customization: Supported (Shapes/Holes)
- Weight (100MM Thick): ~120KG/M2
Application Areas
This stainless steel honeycomb panel is ideal for precision and heavy-load environments, including:
- Optical & Physics Labs: Supporting microscopes, lasers, and precision measurement instruments
- Semiconductor Manufacturing: Stable work surfaces for wafer processing or chip testing equipment
- Industrial Workstations: Heavy-equipment stations, CNC machine bases, or tooling platforms
- Medical Device Labs: Precision work surfaces for diagnostic or surgical equipment assembly
- Aerospace & Defense: Vibration-damped surfaces for avionics or military equipment testing
- Research Facilities: Custom work surfaces for specialized experimental setups
