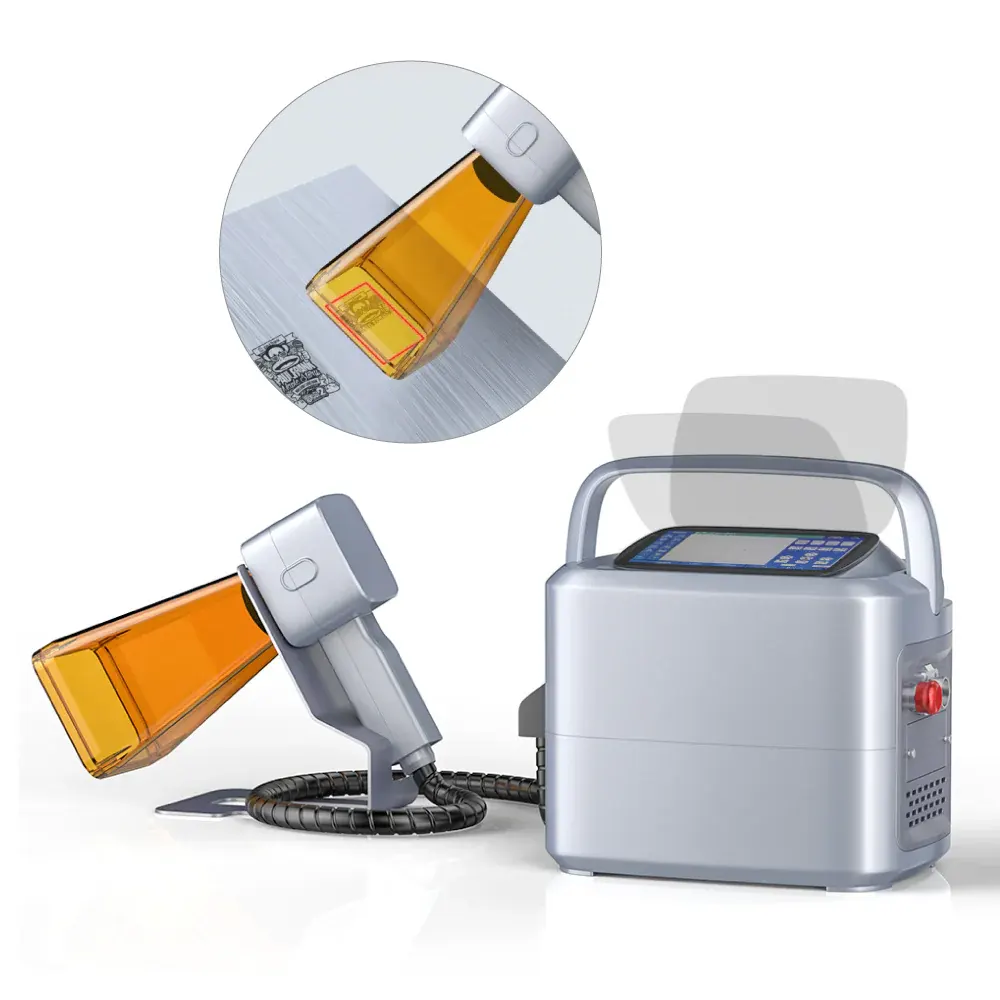

Fiber Mini Handheld Laser Marking Machine
Introduction
The fiber handheld mini laser marking machine is a cutting-edge industrial tool designed for high-precision engraving and marking on all metal materials and mainstream plastics. With its compact, lightweight design and advanced fiber laser technology, handheld laser marking machine delivers exceptional performance for both stationary and mobile applications. Ideal for industries requiring permanent markings, this handheld laser marker combines portability, efficiency, and user-friendly operation.

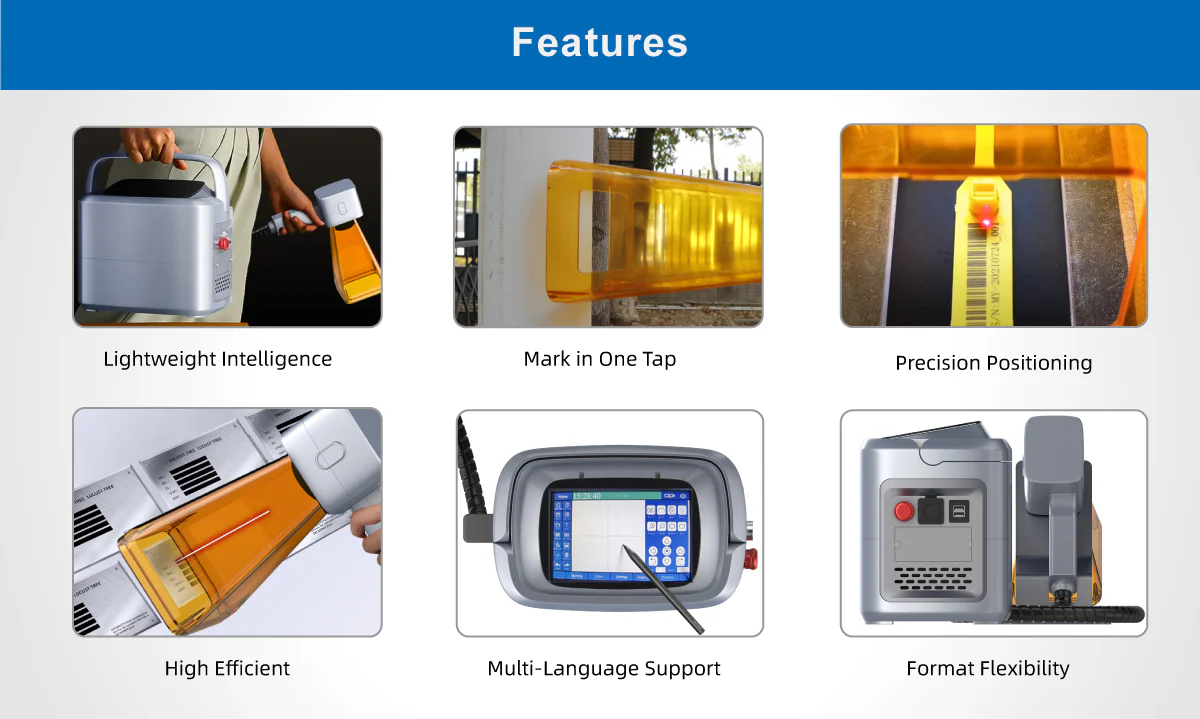

Features
✅ Compact & Portable Design

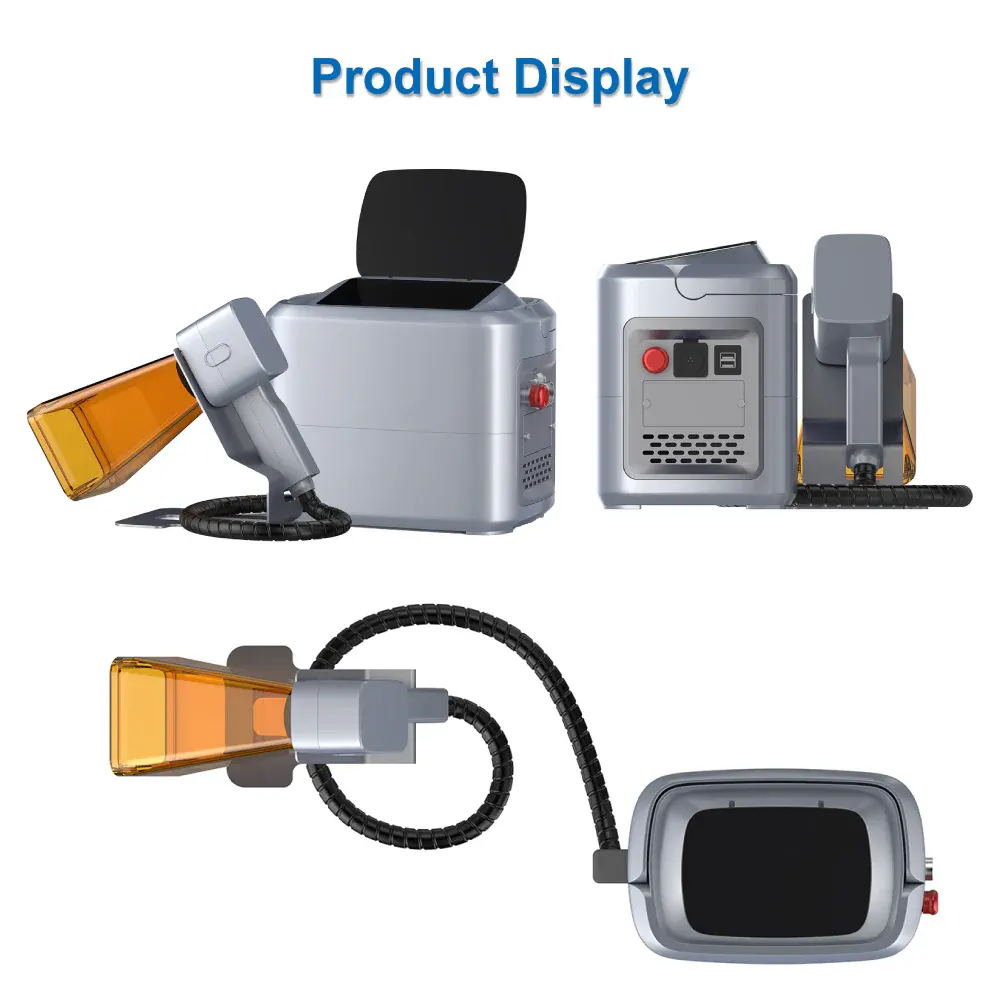

- Lightweight integrated body (4.5kg~10.5kg) with ergonomic anti-slip handle.
- Detachable 1.75m cable and lithium battery option for unlimited mobility.
✅ Multi-Power Options
- Available in 20W/30W/50W models (actual output ≥20W/30W/50W).
✅ High Precision & Speed
- Repeat positioning accuracy: 0.003mm; Max marking speed: 12,000mm/s.
- 110×110mm marking area (customizable) with rapid auto-focus.
✅ Enhanced Safety
- Laser protective cover and touchscreen guard to prevent accidental exposure/damage.
- Red light positioning and 1064nm wavelength compliance.
✅ Smart Control System

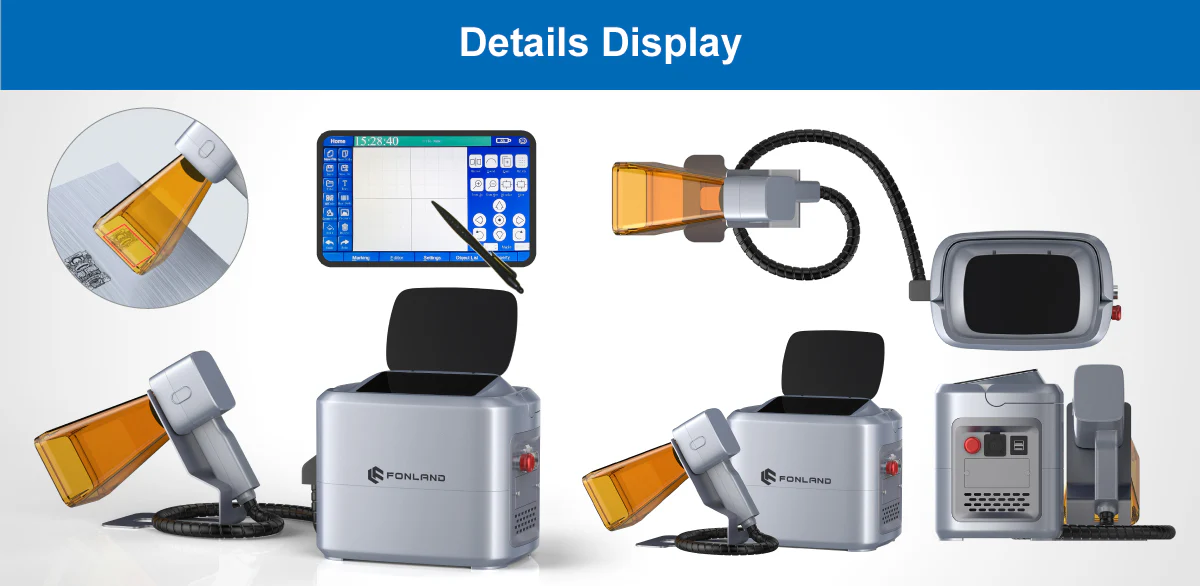

- 7-inch HD touchscreen with stylus and 21-language support.
- Multi-user permissions, data backup, and real-time status monitoring (start/complete/fault alerts).
✅ Long-Lasting Performance
- 11,600mAh removable battery (12hr runtime) + 100,000-hour laser lifespan.
- Hidden field lens design for reduced damage risk.
✅ Multi-Material Compatibility
- Supports BMP/DXF/HPGL/JPEG/PLT files and multiple barcodes (CODE39/128/QR).

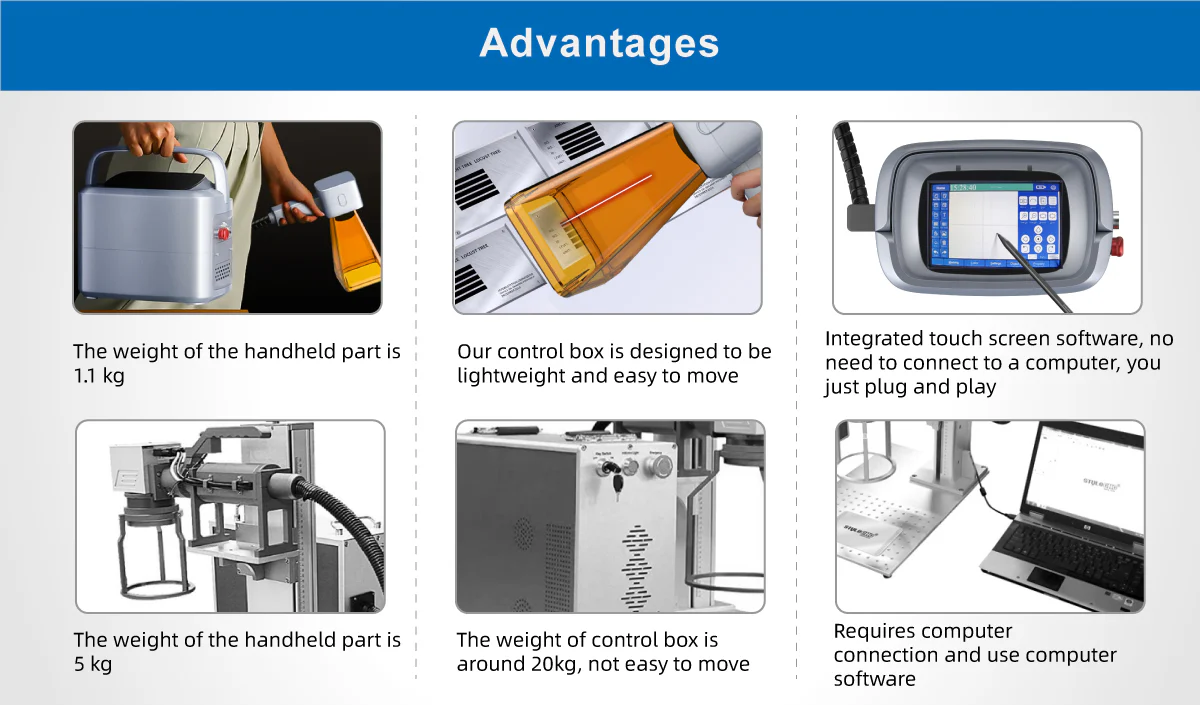

Advantages
✅ High Efficiency: 12,000mm/s marking speed and 0.0012mm minimum line width.
✅ Durability: ABS material chassis and air-cooled system for stable operation.
✅ Versatility: Supports text, logos, dates, barcodes, QR codes, graphics, and multilingual fonts.
✅ Flexibility: Customizable marking range (default: 110×110mm) and optional battery-powered use.

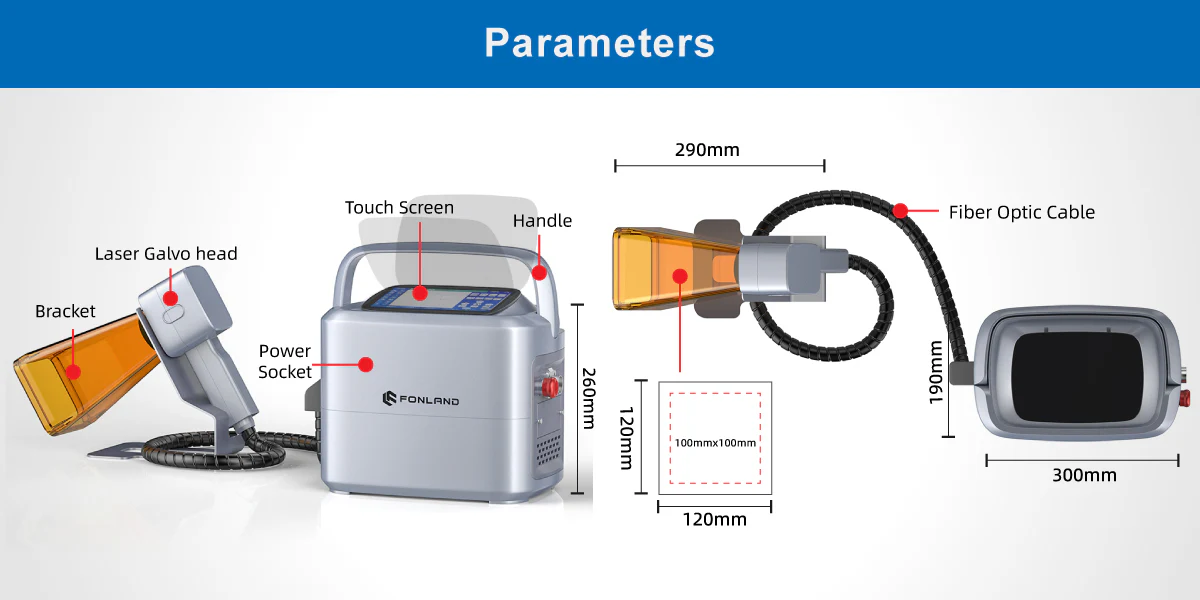

Parameters
| Parameter | HLC-20W | HLC-30W | HLC-50W |
| Laser Power | ≥20W | ≥30W | ≥50W |
| Laser Wavelength | 1064nm | 1064nm | 1064nm |
| Marking Speed | ≤12,000mm/s | ≤12,000mm/s | ≤12,000mm/s |
| Laser Lifespan | >100,000 hours | >100,000 hours | >100,000 hours |
| Min. Line Width | 0.0012mm | 0.0012mm | 0.0012mm |
| Repeat Positioning Accuracy | 0.003mm | 0.003mm | 0.003mm |
| Cooling System | Air-cooled | Air-cooled | Air-cooled |
| Battery Capacity | 11,600mAh (12h runtime) | 11,600mAh (12h runtime) | 11,600mAh (12h runtime) |
| Power Supply | 220V/50Hz or built-in battery | 220V/50Hz or built-in battery | 220V/50Hz or built-in battery |
| Weight (Plug-in Model) | 7kg (packaged) | 7.5kg (packaged) | 8kg (packaged) |
| Weight (Lithium Model) | 9kg (packaged) | 9.5kg (packaged) | 10kg (packaged) |

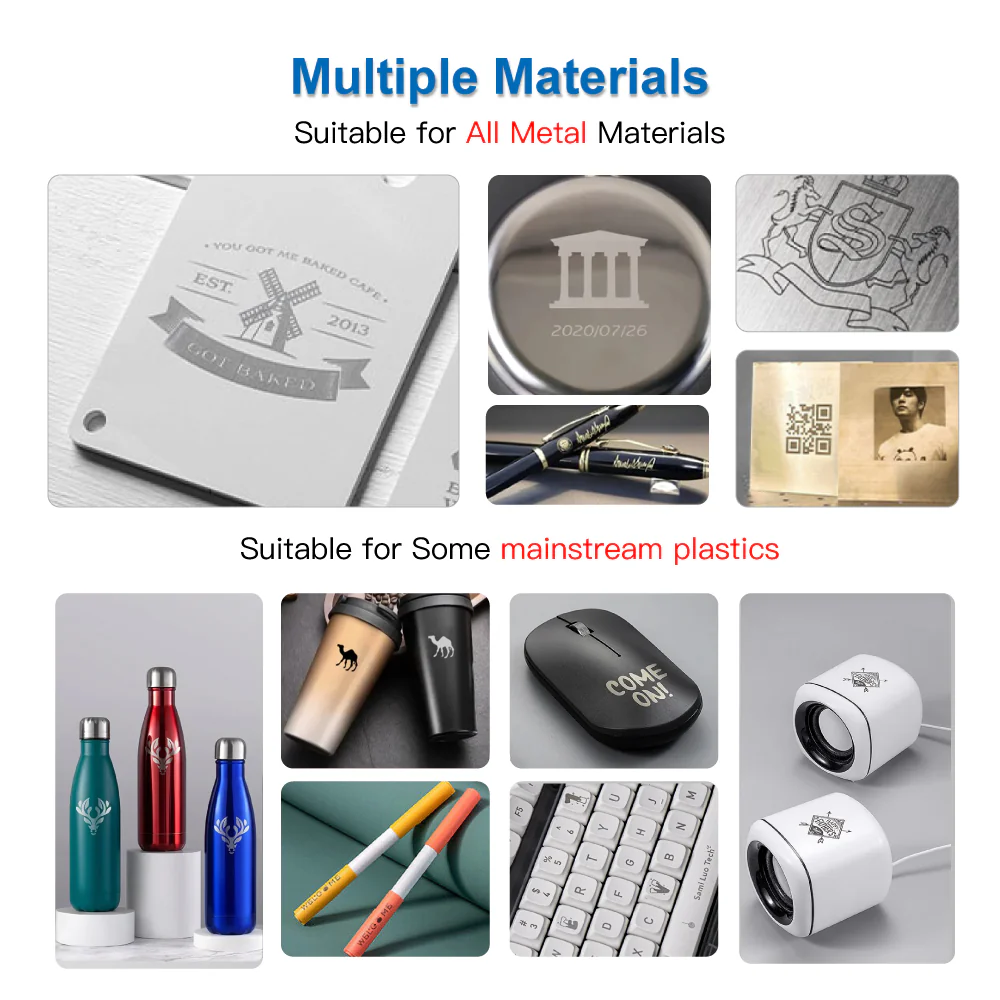

Applications
- Industrial Manufacturing: Serial numbers, barcodes, production dates.
- Jewelry & Tools: Brand logos, precision engravings.
- Electronics: QR codes, data matrix codes.
- Automotive: Part identification, safety labels.
- Plastics: Custom markings on ABS, PVC, and more.

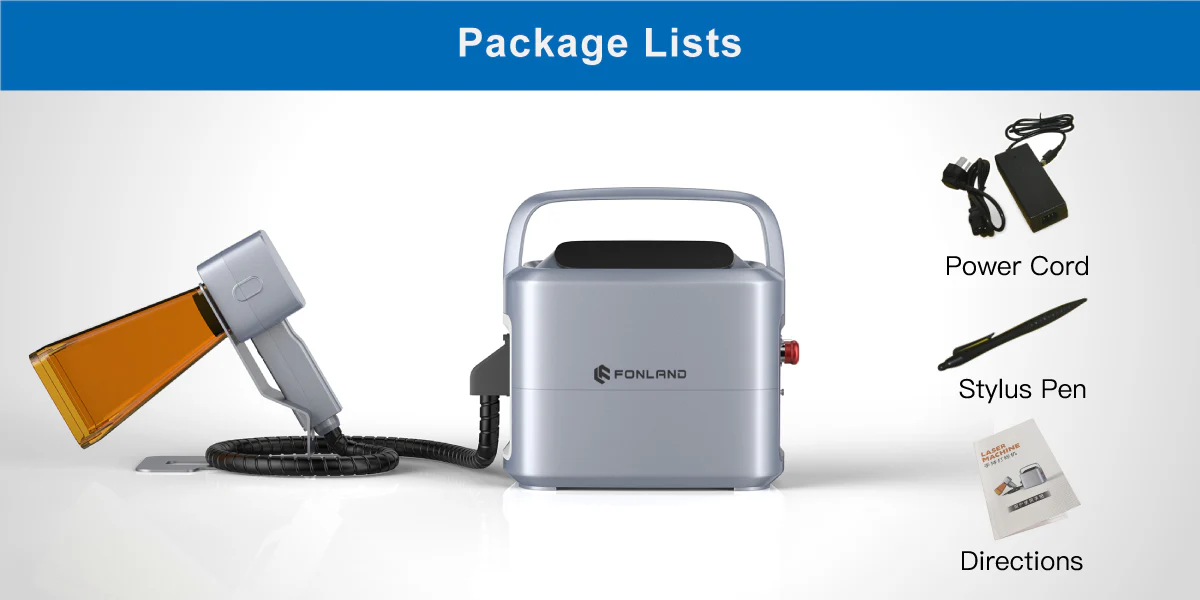

Packaging List
Standard Accessories:
- Main machine unit-mini laser marker
- Power adapter (220V/50Hz)
- User manual & warranty card
- Touch pen
