UK-YT-JXH15 Integrated Robot Welding Machine: All-in-One Efficiency for Industrial Welding

UK-YT-JXH15 Integrated Robot Welding Machine: All-in-One Efficiency for Industrial Welding

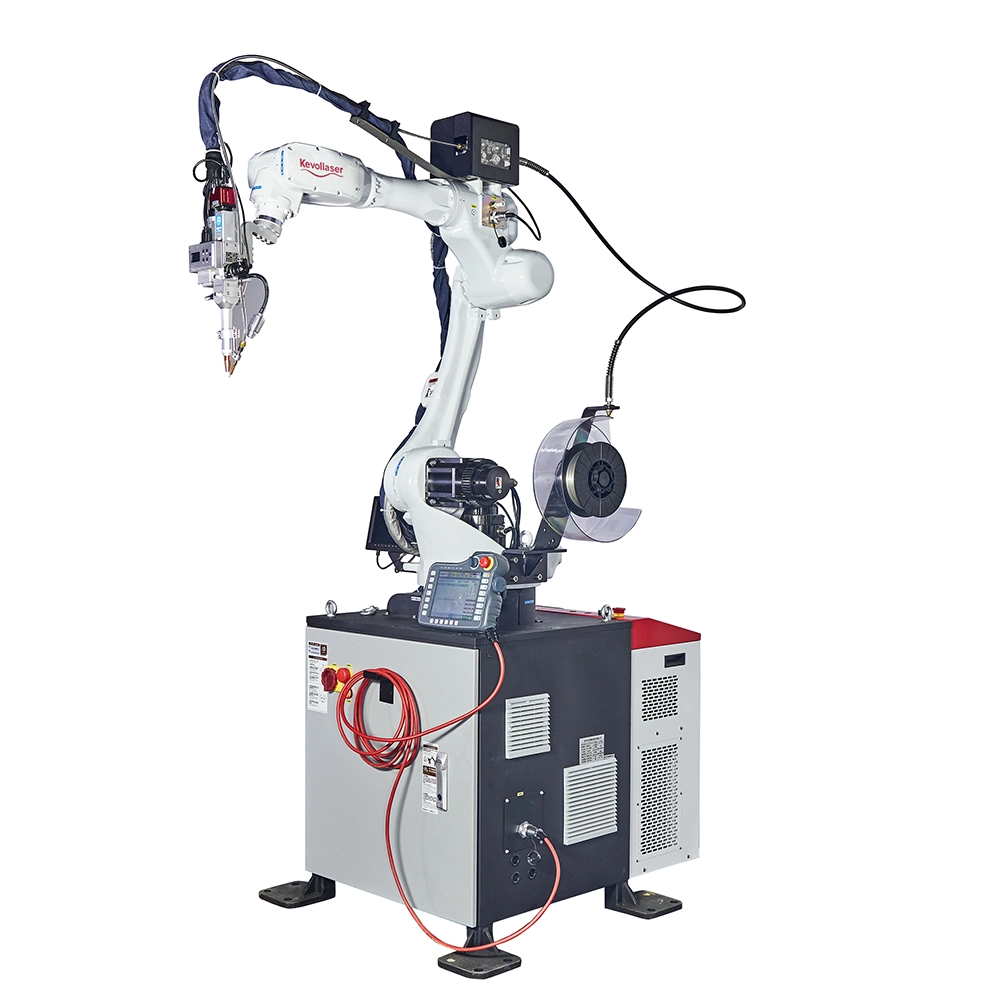

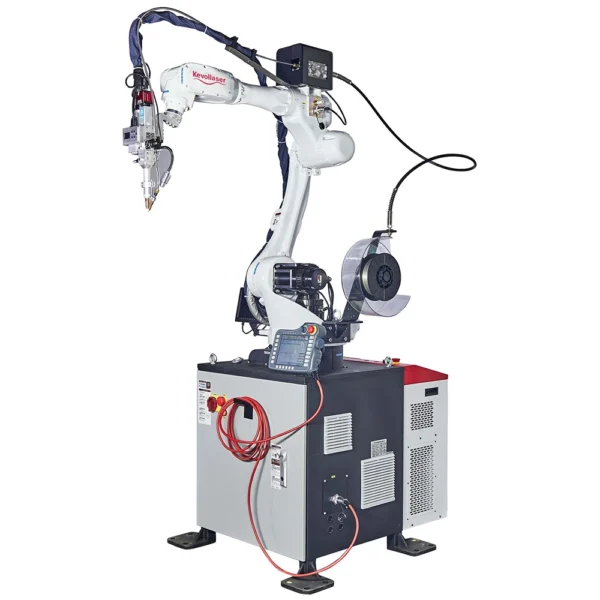

The UK-YT-JXH15 Integrated Robot Welding Machine is a compact, high-performance all-in-one solution designed for modern industrial welding needs. This integrated robot welding machine combines a precision manipulator with advanced laser technology (1070±10nm wavelength) to enable barrier-free welding operations, supporting both continuous and pulse working modes for versatile application. It excels in welding stainless steel and carbon steel with a recommended thickness range of 0.5-5mm, requiring a welding gap of ＜0.5mm, and delivers consistent results with ±0.05mm repeated positioning accuracy.

Equipped with red light indication (CCD optional) for easy aiming and an adjustable spot size of 0.2mm-5mm, it ensures smooth, aesthetic welds with minimal heat-affected zone and deformation. With optional laser power of 1500-2000W, total equipment power of 10-20kW, and a 1.55m manipulator travel, it adapts to diverse workpiece sizes. Ideal for household appliance manufacturing, hardware production, automotive component assembly, and medical device welding, this integrated robot welding machine stands out for its zero consumables, 100,000-hour service life, and 1/8 power consumption of traditional welders—cutting costs while boosting factory productivity.

Key Features of UK-YT-JXH15 Integrated Robot Welding Machine

• Barrier-free operation: Integrated manipulator enables flexible access to complex workpiece angles, eliminating obstacles in 3D welding scenarios
• Versatile working modes: Supports both continuous and pulse modes, matching different welding requirements for stainless steel, carbon steel, and other metals
• High-quality weld output: Minimal heat-affected zone, small workpiece deformation, and smooth, aesthetic welds—reducing post-welding finishing work
• Low maintenance & long lifespan: No consumables required, zero regular maintenance needs, and a service life of up to 100,000 hours for long-term industrial use
• Energy-efficient design: Total power consumption is only 1/8 that of YAG laser welders, traditional argon arc welders, butt welders, and plasma welders—slashing energy costs
• Precise positioning & aiming: ±0.05mm repeated positioning accuracy ensures consistent weld quality; red light indication (CCD optional) enables quick, accurate workpiece alignment
• Adjustable spot size: 0.2mm-5mm adjustable spot diameter adapts to thin (0.5mm) and thick (5mm) materials, enhancing application flexibility
• User-friendly operation: Simple control interface reduces operator training time, lowers labor costs, and improves overall factory workflow efficiency
• Broad voltage compatibility: Works with AC220V/380V 50-60Hz power supply, compatible with global industrial electrical standards for easy integration
• Compact & space-saving: Integrated design combines manipulator, laser system, and control unit in one setup, optimizing factory floor space utilization

UK-YT-JXH15 Integrated Robot Welding Machine Technical Specifications

UK-YT-JXH15 Integrated Robot Welding Machine Quick Reference: 9 Core Parameters

• Model: UK-YT-JXH15 (dedicated integrated robot welding machine for industrial use)
• Laser wavelength: 1070±10nm (optimized for stainless steel and carbon steel welding)
• Working modes: Continuous and pulse (flexible for different material thicknesses)
• Welding thickness range: 0.5-5mm (stainless steel/carbon steel as primary materials)
• Repeated positioning accuracy: ±0.05mm (ensures uniform weld quality across workpieces)
• Optional laser power: 1500-2000W (matches diverse welding intensity needs)
• Manipulator travel: 1.55m (covers medium-sized workpieces in factory settings)
• Spot size: 0.2mm-5mm adjustable (adapts to thin and thick material welding)
• Service life: Up to 100,000 hours (high durability for long-term industrial operations)

Application Areas of UK-YT-JXH15 Integrated Robot Welding Machine

• Household Appliance Manufacturing: Welding of stainless steel components (e.g., oven inner liners, refrigerator door frames) and carbon steel parts (e.g., washing machine brackets) with smooth, rust-resistant welds
• Automotive Component Assembly: Precision welding of small-to-medium automotive parts (e.g., sensor housings, battery connectors) requiring ±0.05mm accuracy and minimal deformation
• Hardware Production: Joining of metal hardware (e.g., stainless steel hinges, aluminum handles, brass fittings) with adjustable spot size for detailed, aesthetic welds
• Medical Device Welding: Production of stainless steel medical tools (e.g., surgical forceps, diagnostic equipment casings) where clean, smooth welds and material integrity are critical
• Electronics Manufacturing: Welding of thin metal parts in electronic devices (e.g., circuit board brackets, smartphone metal frames) with small heat-affected zone to avoid component damage
• Fitness Equipment Assembly: Welding of carbon steel and aluminum alloy fitness gear (e.g., dumbbell frames, treadmill supports) with strong, deformation-free welds for structural stability
• Kitchenware Production: Seam welding of stainless steel kitchenware (e.g., pots, pans, cutlery sets) with smooth welds that meet food safety and aesthetic standards
• Metal Furniture Manufacturing: Assembly of metal furniture (e.g., office chairs, outdoor tables) using the manipulator’s barrier-free operation to reach complex joint angles
• Custom Metal Processing: Small-batch or mass production of custom metal parts (e.g., industrial fixtures, decorative metal pieces) with user-friendly operation and low energy costs
