Product Introduction

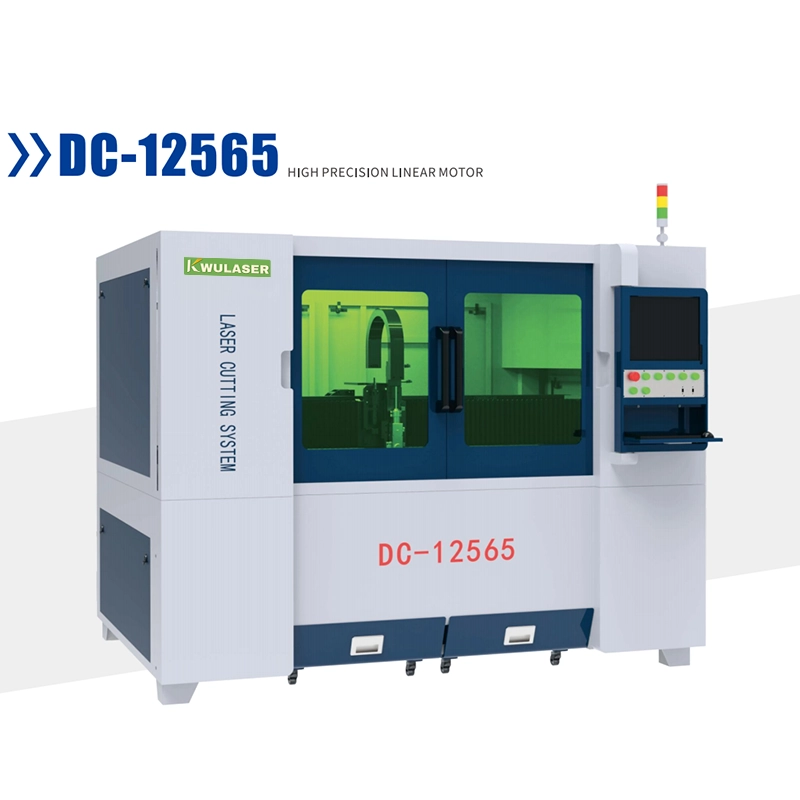

The DC-12565 is a specialized PCB laser cutting machine engineered for high-precision processing in the electronics and PCB manufacturing industries. As a leading PCB laser cutting machine, it features a marble base and fully enclosed gantry dual-drive structure for stable, safe dynamic performance, paired with imported fiber lasers (1500W-6000W power variants) that deliver 1070nm wavelength, 100,000-hour lifespan, and low energy consumption.

With a 650x1250mm cutting range, ±0.025mm cutting accuracy, and 0.06-0.15mm line width, it handles aluminum, copper, stainless steel, and iron-based PCB substrates with seamless, blackening-free results—outperforming traditional CNC machining with non-contact, smoother surfaces. Its user-friendly design includes one-click positioning, remote cutting, and automatic path optimization (compatible with DXF/GERBER files), making it ideal for 3C electronic products, precision hardware, and PCB substrate processing. Whether for small-batch prototyping or high-volume production, this PCB laser cutting machine balances speed, precision, and cost-effectiveness to meet modern industrial demands.

Product Features

• Stable structural design: Marble base + fully enclosed gantry dual-drive for high precision and safe dynamic performance
• High-efficiency fiber laser: Imported model with 100,000-hour lifespan, low power consumption, and low maintenance
• Large format workbench: 650x1250mm size, leading the market in similar PCB laser cutting machines
• Patented clamping fixture: Independently designed for fast, convenient clamping of diverse molds and part numbers
• Ultra-high precision: 0.05mm visual positioning system enables 0.06-0.15mm cutting seam (smooth with auxiliary gas)
• Automatic path optimization: Supports DXF, GERBER, and other file formats for streamlined workflow
• Broad material compatibility: Cuts aluminum alloy, copper, stainless steel, and PCB substrates with fast efficiency
• User-friendly operation: One-click positioning + remote cutting function for operator convenience
• Non-contact processing: Smoother surface than CNC machining; no damage to workpiece surfaces

Product Specification Table

Brief Description

• Product: PCB Laser Cutting Machine DC-12565
• Laser Power: 1500W-6000W
• Cutting Range: 650×1250mm
• Cutting Accuracy: ±0.025mm
• Line Width: 0.06-0.15mm
• Machine Weight: 2000kg
• Rated Power: 10/18KW
• Compatible Files: DXF, GERBER
• Core Use: PCB, Metal Substrate Precision Cutting

Application Areas

This PCB laser cutting machine is ideal for industrial sectors including:

• Electronics Industry: PCB substrate processing (aluminum, copper, stainless steel, iron-based)
• 3C Electronic Products: High-precision, fast cutting of consumer electronics components
• Precision Hardware: Cutting metal parts for machinery and equipment
• Sheet Metal Processing: Seamless forming of carbon steel (no blackening, smooth surfaces)
• Prototyping Labs: Small-batch production without expensive precision molds
