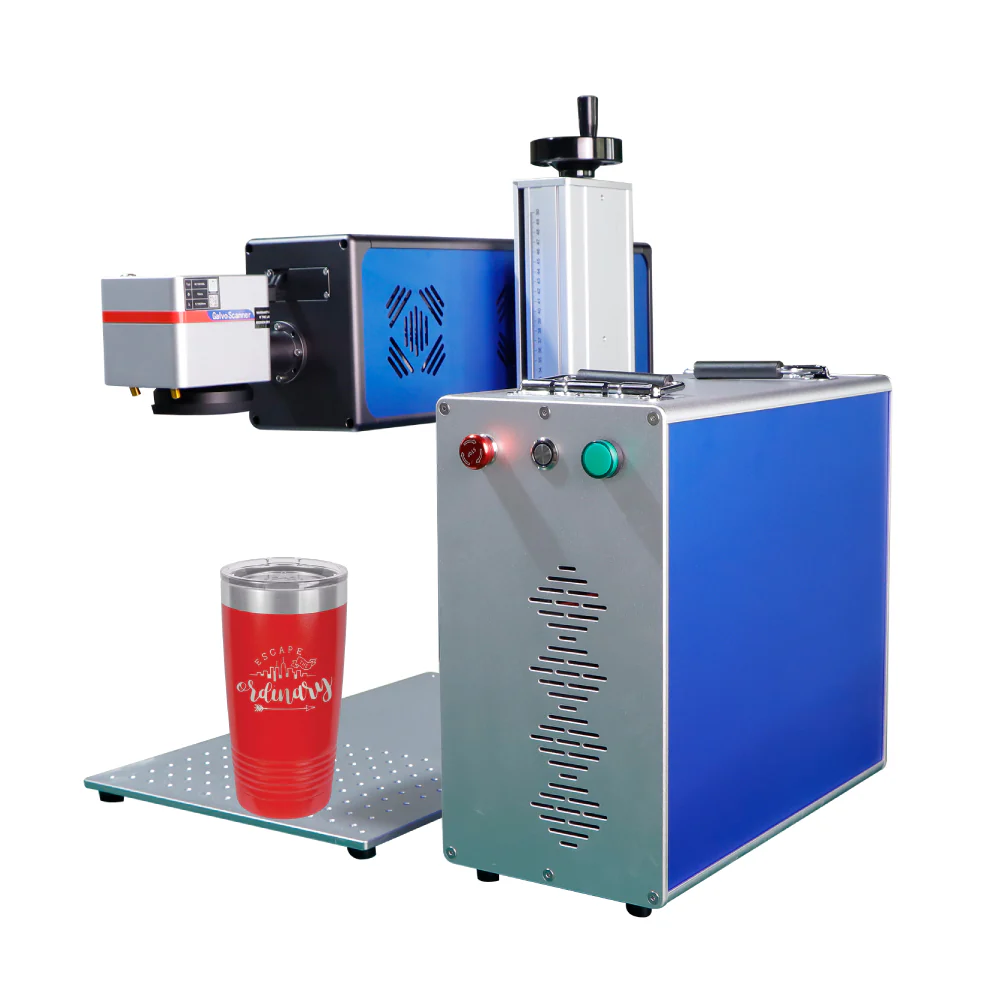

Split RF CO2 Laser Marking Machine
Introduction
The split RF CO2 laser marking machine is a high-quality industrial-grade laser system designed for precision marking and engraving on a variety of non-metallic materials. Equipped with a CO2 RF laser generator and a high-speed galvanometer scanning system, the RF CO2 laser marker has excellent stability, efficiency and versatility. Suitable for industries such as clothing, crafts, packaging, etc. that require high-precision and high-speed processing solutions

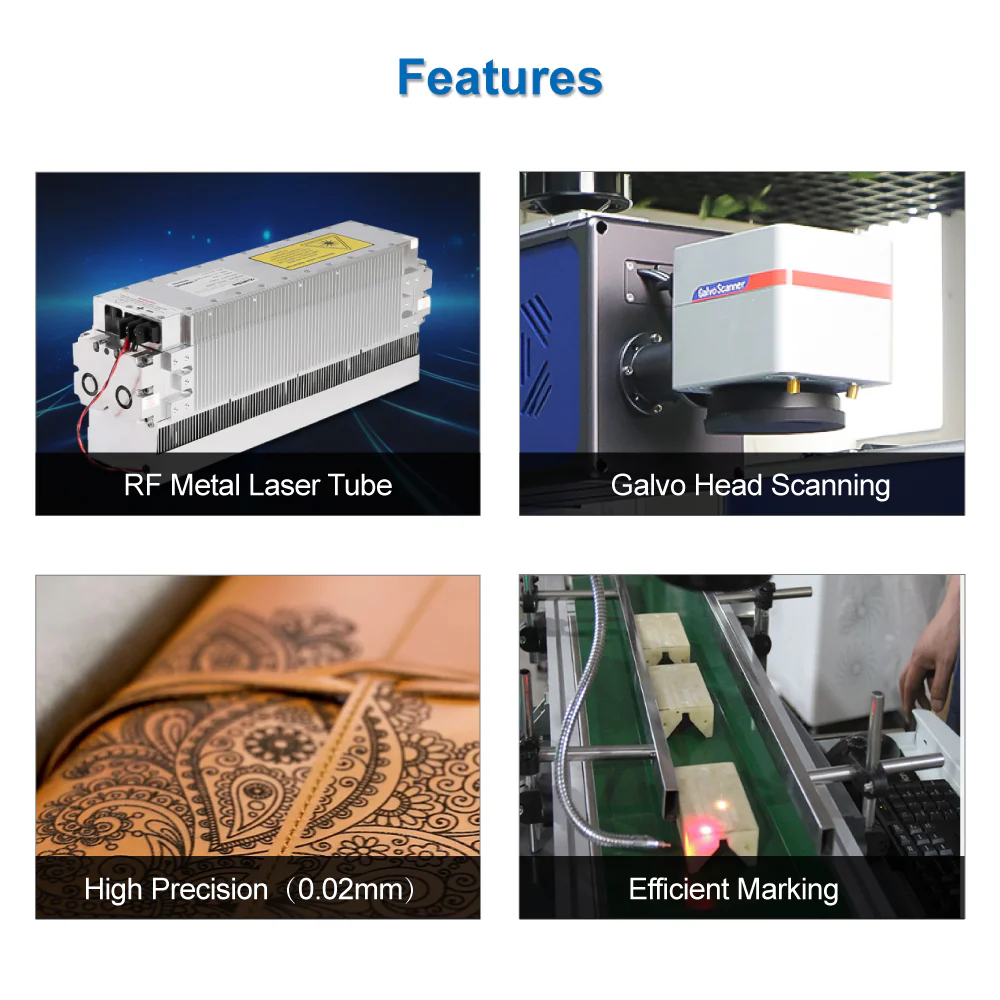

Features
✅RF Metal Laser Tube: Uses an integrated all-metal RF laser tube with a compact waveguide cavity design for high beam quality and consistent marking performance.
✅Galvo Head Scanning: Equipped with a high-speed galvanometer scanning system for fast, accurate, and stable laser beam control.
✅High Precision (0.02mm): Delivers fine marking and engraving with positioning accuracy up to 0.02mm, ideal for detailed patterns on non-metallic materials.
✅Efficient Marking: Supports continuous and high-speed marking production lines, improving processing efficiency for industrial applications.
✅Sturdy Machine Frame: The solid frame guarantees vibration-free operation and keeps all optical components firmly in place.
✅Rotating Fixture Optional: Optional rotary attachments available for marking cylindrical or round objects, including standard, ring, pen, and multi-function fixtures.

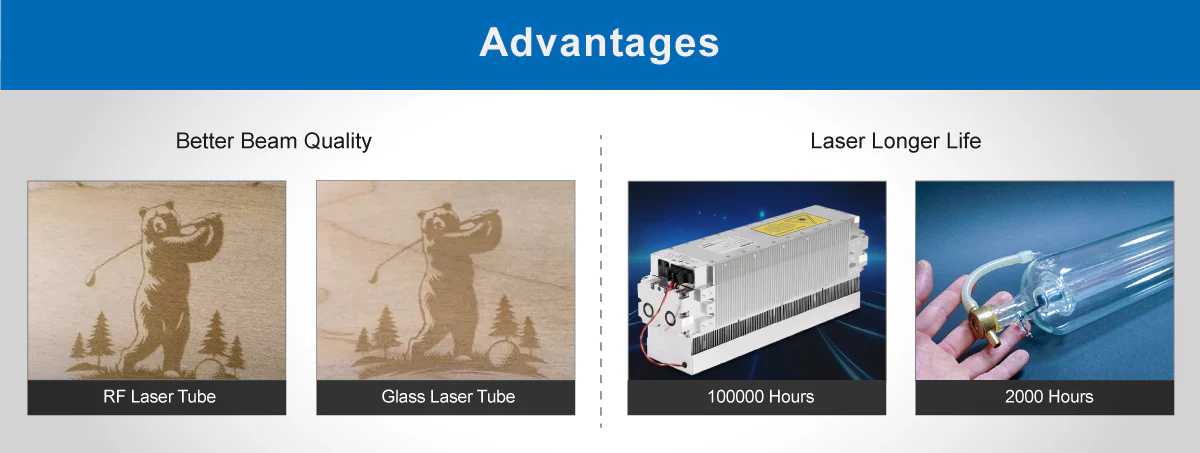

Advantages:
⭐ Better Beam Quality: M² (Beam quality factor) <1.2, the cutting precision of the Split RF CO2 laser marking machine is 3 times higher than that of the glass tube, suitable for high-precision processing, and the edge is smooth.

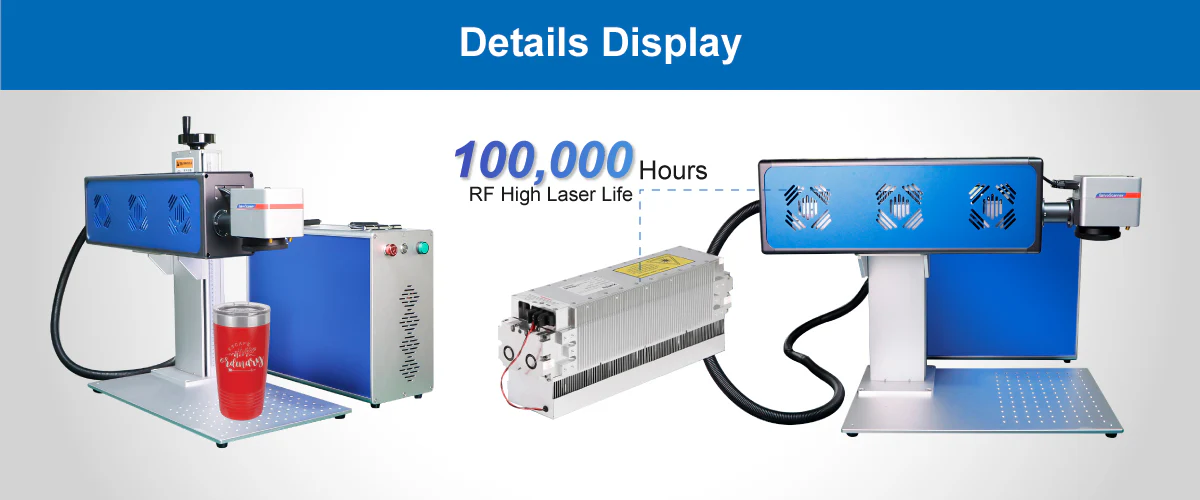

⭐ Longer Life: Split RF CO2 laser marker has a lifespan of up to 100,000 hours, can be recharged/refilled by the manufacturer, with low maintenance costs, suitable for continuous operation.
Application
- Textile and Clothing: Clothing, leather, bags
- Crafts and Decoration: Wood, gifts, acrylic, PMMA, ceramics
- Packaging and Printing: Paper, film, label, ABS
- Industrial Manufacturing: Plywood, rubber, PP, rubber

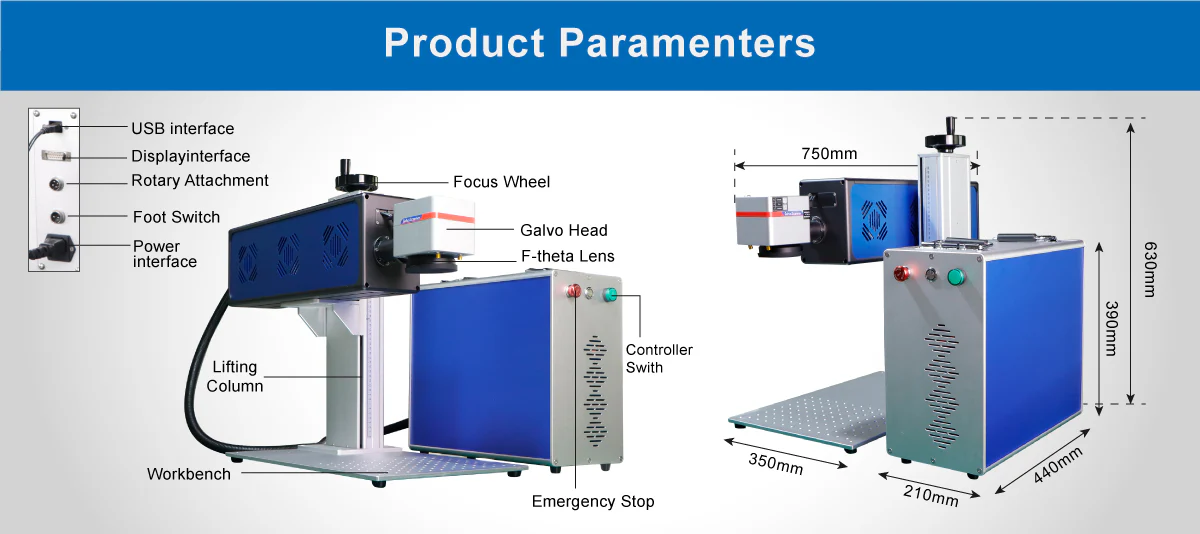

Parameter
| Parameter | Specification |
| Output Power | 40W / 60W |
| Laser Frequency | 0–25 kHz |
| Central Wavelength | 10.6 μm |
| Processing Area | 110×110 – 300×300 mm |
| Max. Marking Speed | 7000 mm/s |
| Max. Engraving Depth (Single Pass) | ≤2 mm (Depends on the material) |
| Minimum Line Width | 0.015 mm |
| Minimum Character | 0.2 mm |
| Min. Beam Quality (Max. M²) | 1.2 |
| Expected Service Life (MTTF) | 100,000 hr |
| Support Operating Software | EZCAD2 Lite / Lightburn |
| Compatible Operating Systems | Windows XP, Vista, 7, 8, or 10 |
| Power Supply | AC110V / 220V ±10%, 50Hz / 60Hz |
| Operation Environment | Working temperature: 0°–40°Storage temperature: –10°–60°, Humidity: 30%–85% |
| Machine Size | 655 × 550 × 350 mm |
Packaging List
- CO2 Laser Machine x1
- U Disk(Manuals and Software) x1
- Power Cable x1
- Allen Wrench x1
- Screwdriver x2
- Positioning Bar(With Screws) x2 (M6 4Pcs)
- USB Cablex1
- Black Aluminum Sheet x1
- Foot Switch x1
